Description

Due to Davey’s Pricing Policy, please call our office to discuss design and pricing

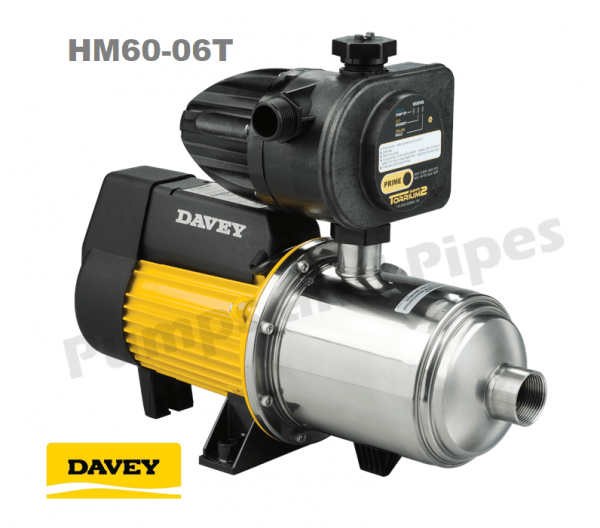

Davey HM60-06T pressure pump is in stock and ready to despatch or collect at $ …….00 including GST

Automatic pressure system for household and domestic water supply, water transfer and commercial installations

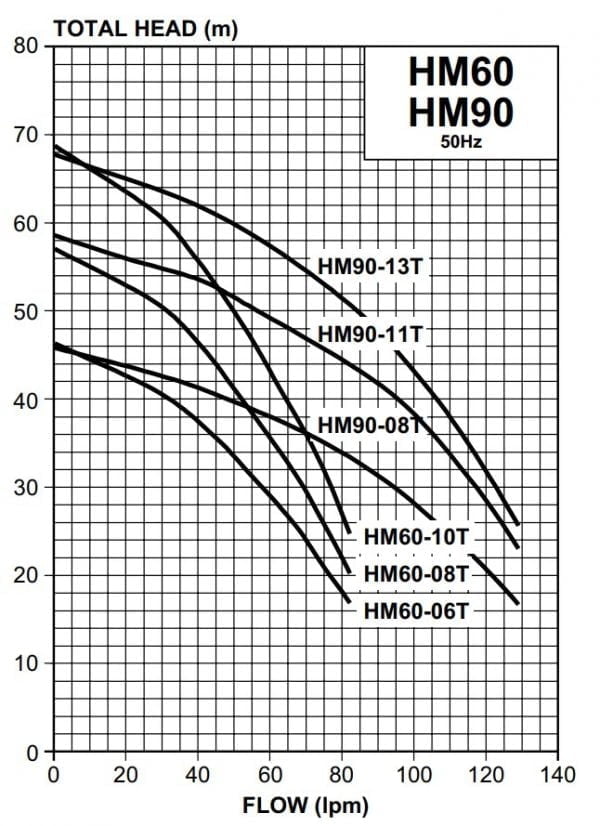

Flow rate: 20 lpm @ 410 kPa
Flow rate: 40 lpm @ 360 kPa
Flow rate: 60 lpm @ 260 kPa

Motor details:  TEFC 230Volt 50hz IP56 Class F insulation 2900rpm FLC 4.0 amps
Pump construction: Casing, impellers, diffusers AISI304 shaft AISI316 o’rings EPDM
Mechanical seal: Carbon stationary/ceramic rotating EPDM
Pump connections: Suction 32mm FI BSP, discharge 25mm FI BSP

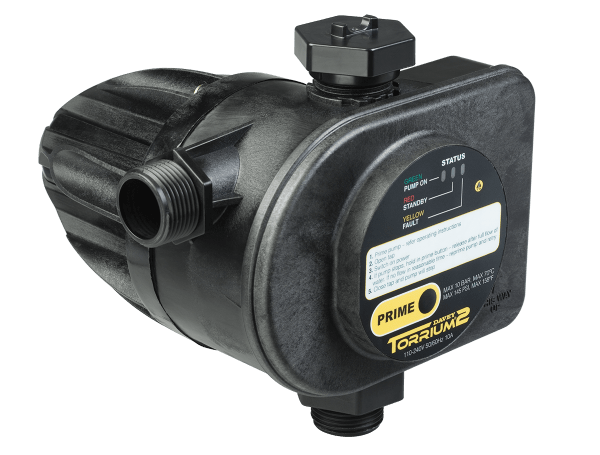

Torrium TT45 Pump Controller supplies a constant flow of water until shut off
Torrium has Dry Run Protection and Auto restart, overload, high temperature, status check indicator
Torrium ratings: IP56 max 10 amps single phase 220V – 260v
Torrium Temperature rating: water max 70 degC, ambient max 50 degC, min water 1 degC
Torrium TT70 shut off pressure rating 150 kPa – 450 kPa
Connections: 25mm MI BSP inlet and outlet

Davey built, totally enclosed fan cooled (TEFC) electric motor:
• Single-phase motors have built in thermal overload protection with automatic reset
• Sealed and greased for life motor bearings

AS 4020 approved for drinking water
Manufacturer’s warranty:  2 year  Made in Australia
