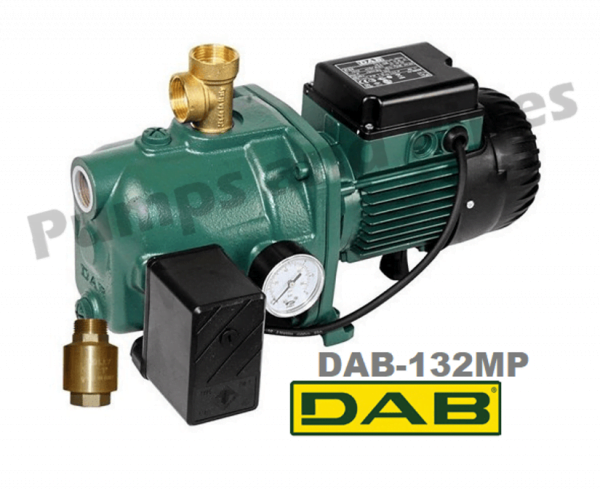

DAB-132MP Pressure Switch Pressure Pump

DAB-132MP Pressure Switch Pressure Pump

$896.00

In stock

$896.00

Pressure system with pressure switch for applications where you want extra flexibility
Fine tune your pump by adjusting your pressure switch for constant flow

Pump performance:  Flow rate:  60 lpm @ 340 kPA
Power requirements:  1.00kW  240/1/50  FLC  7.2 amps

Manufacturer’s warranty:  2 years  Made in Italy
AS/NZS 4020 Approved for Drinking Water

SKU: 701384

Description

Pressure system with pressure switch for applications where you want extra flexibility.
You are able to adjust your cut in and cut out valves.
Fine tune your pump by adjusting your pressure switch for constant flow.

Pump performance:  Shut off head 480 kPA
Flow rate:  20 lpm @ 420 kPA
Flow rate:  40 lpm @ 370 kPA
Flow rate:  60 lpm @ 340 kPA
Flow rate:  80lpm @ 270 kPA

Power requirements:  1.00kW  240/1/50  FLC  7.2 amps
Pump requires a pressure tank, recommended tank 18 litre PN10
Pump connections:  suction 25mm FI BSP, outlet 25mm FI BSP
Maximum working pressure: 800 kPA

Manufacturer’s warranty:  2 years  Made in Italy
AS/NZS 4020 Approved for Drinking Water

Additional information

Weight 18 kg

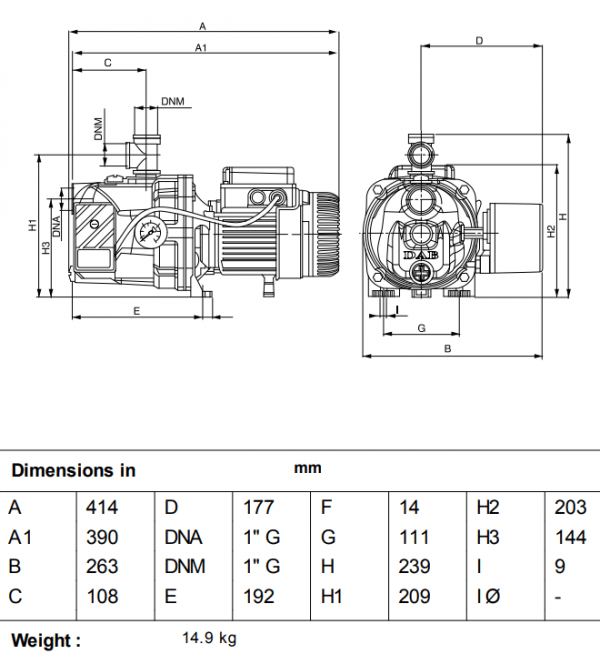

Dimensions 60 × 25 × 50 cm

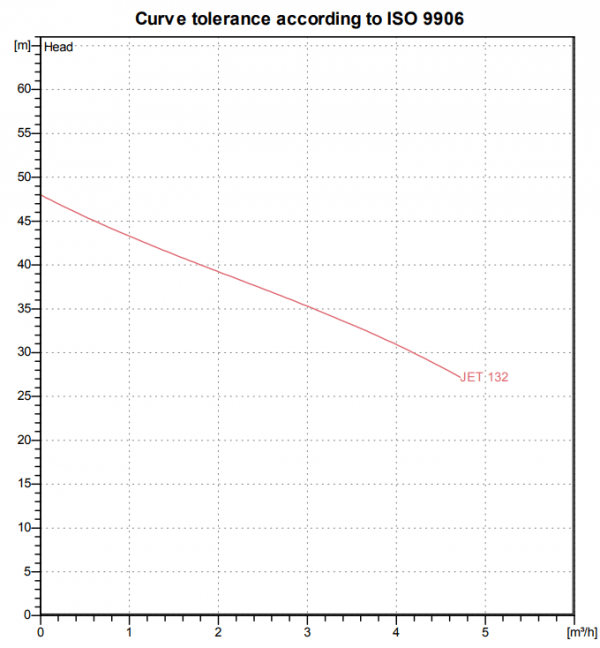

DAB-132MP curve and tech data
