Calpeda Mèta Self Priming Pressure Pump With Built In Frequency Inverter VFD 1.1kW

Calpeda Mèta Self Priming Pressure Pump With Built In Frequency Inverter VFD 1.1kW

$1,660.00

In stock

$1,660.00

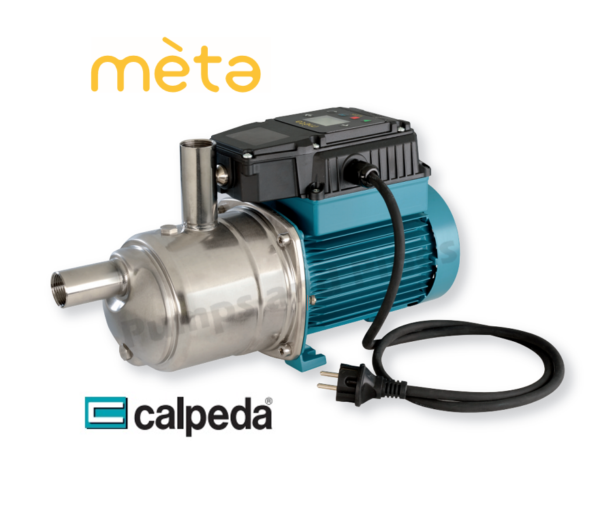

Calpeda self-priming booster set with built in frequency inverter
Calpeda Mèta is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and built in pressure vessel
VSD controls the start and stop of the pump and allows to keep a constant pressure

Constant pressure from 5 lpm through to 100 lpm @ 300 kPA

Manufacturer’s warranty:  2 years



SKU: META
View cart

Description

Calpeda self-priming booster set with built in frequency inverter
Calpeda Mèta is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and built in pressure vessel
VSD controls the start and stop of the pump and allows to keep a constant pressure

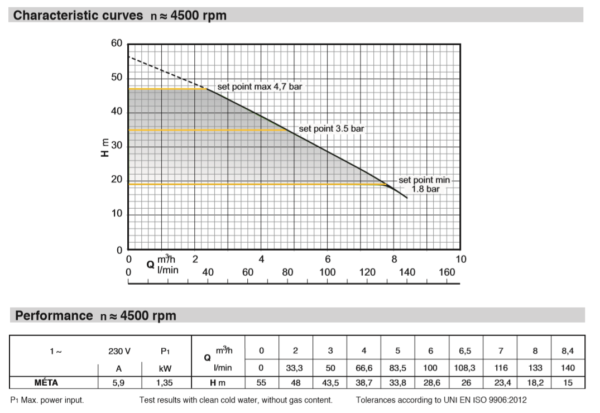

Pump performance:  20 lpm @ 530 kPA
Pump performance:  120 lpm @ 200kPA

Constant pressure from 5 lpm through to 100 lpm @ 300 kPA

Power supply:  240 volt single phase 50hz
Unit IP rating:  IP54
Pipe connections:  25mm FI BSP suction 25mm FI BSP discharge
Low noise: 70 dba @ 3 bar
Maximum casing pressure: 8.0 bar
Maximum inlet pressure:  1.0 bar
Maximum liquid temperature:  35 deg C

Run dry protection

Manufacturer’s warranty:  2 years



Additional information

Weight20 kg
Dimensions500 × 300 × 300 cm

Calpeda meta brochure

Download

Meta English IOM

Download
