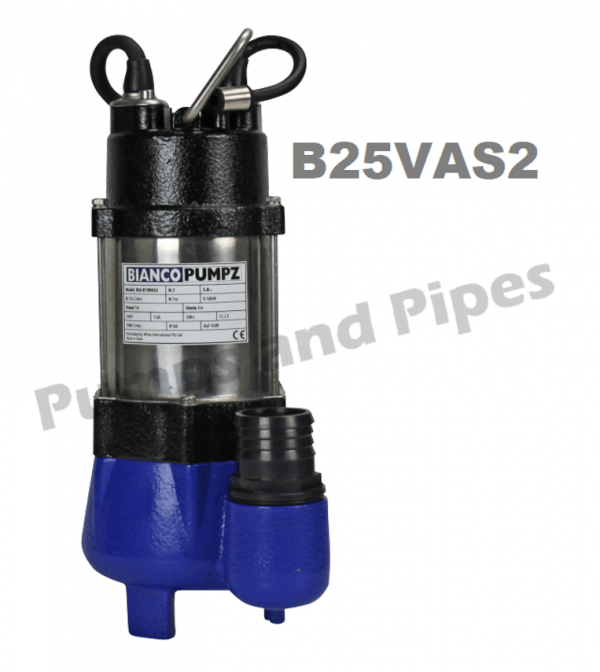

Bianco BIA-B25VAS2 Submersible Vortex Pump

Bianco BIA-B25VAS2 Submersible Vortex Pump

$200.00

In stock

$200.00

Submersible vortex drainage pump fitted with cast iron semi vortex impeller.
Can pump particles up to 15mm.
250W, 240 Voltage

SKU: B25VAS2

Description

Pump Characteristics:
• Cast iron pump body and impeller for durability
• Fully automatic operation by means of float switch.
• Triple seal system: Dual Mechanical Seal (carbon/ceramic) and oil seal
• Handy carry handle
• Hose tail adaptor included
• 240V single phase motor with built-in thermal overload protection
• 10m of power cable, H07RN-F.
• For use with clean or slightly dirty water, dewatering of cellars, storm-water pit emptying, dirty water with non-abrasive solids (up to 15mm dia.) and stringy material in suspension.

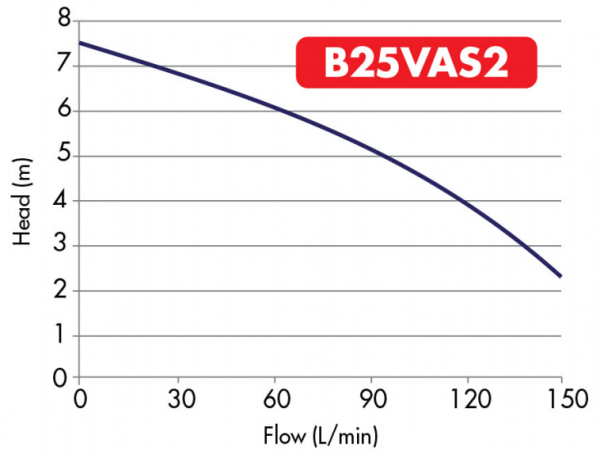

• Max Flow 150 L/min
• Max head 7.5 m

Liquid
Clean water temperature range: 2 – 35 °C
Materials
Pump body: Cast Iron
Impeller: Cast iron/Nylon
Shaft: Stainless Steel
Shaft seal: Dual mechanical seal – carbon/ceramic and oils seal
Installation
Maximum ambient temperature: 40 °C
Pipe connections discharge: 1 1/4”

Additional information

Weight 12 kg
Dimensions 25 × 25 × 40 cm

Bianco Pumpz BIA-B25VAS2 Data Sheet

Download

Bianco Pumpz Submersible Pump Manual

Download
