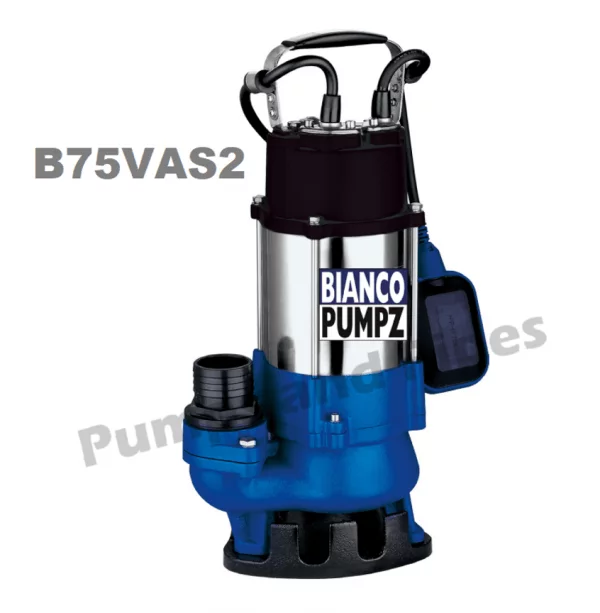

Bianco BIA-B75VAS2 Submersible Vortex Pump

Bianco BIA-B75VAS2 Submersible Vortex Pump

$310.00

In stock

$310.00

Submersible drainage pump fitted with cast iron semi vortex impeller.
Can pump particles up to 25mm.
750W, 240 Voltage

SKU: B75VAS2

Description

Pump Characteristics:
• Cast iron pump body and impeller for durability
• Fully automatic operation by means of float switch
• Triple seal system: Dual mechanical seal – carbon/ ceramic, and oil seal
• Handy carry handle
• Hose tail adaptor included
• 240V single phase motor with built-in thermal overload protection.
• 10m power cable, H07RN-F.
• For use with clean or slightly dirty water, dewatering cellars, storm-water pit emptying, dirty water with non-abrasive solids (up to 25mm dia) and stringy material in suspension.

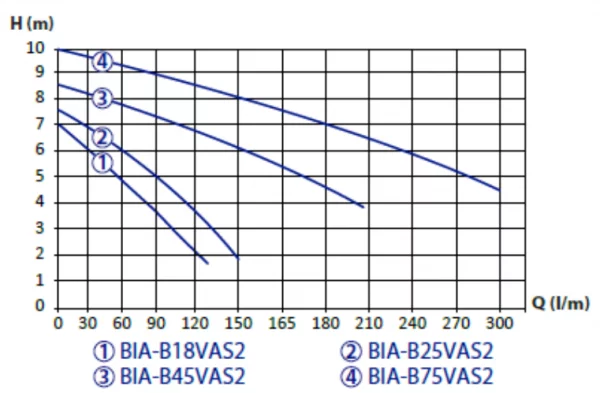

• Max flow 300 L/min
• Max Head 10 m

Liquid
Clean water temperature range: 2 – 35 °C
Materials
Pump body: Cast Iron
Impeller: Cast iron
Shaft: Stainless Steel
Shaft seal: Dual mechanical seal – carbon/ceramic and oil seal
Installation
Maximum ambient temperature: 40 °C
Pipe connections discharge: 2”

Additional information

Weight 23 kg
Dimensions 22 × 27 × 55 cm

Bianco Pumpz BIA-B75VAS2 Data Sheet

Download

Bianco Pumpz Submersible Pump Manual

Download
