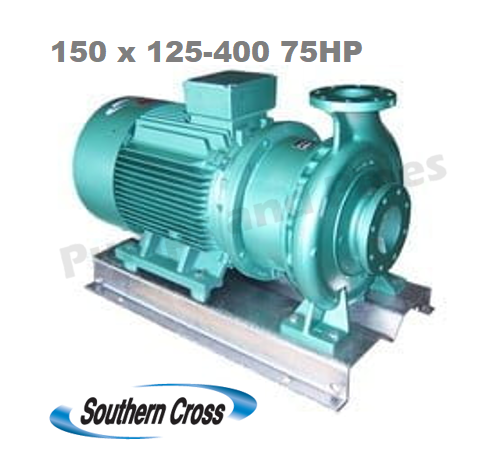

150 x 125-400 75HP 55 kW Southern Cross Centrifugal Motor Pump – MJG58A-F and MJG58J-F

150 x 125-400 75HP 55 kW Southern Cross Centrifugal Motor Pump – MJG58A-F and MJG58J-F

$9,110.00$10,210.00

In stock

$9,110.00$10,210.00

Clear
View cart

Pentair Southern Cross end suction centrifugal motor pump

Flow rate:  60 lps @ 56 meters  (47,480 gph @ 560 kPA)
Flow rate:  80 lps @ 48 meters  (63,300 gph @ 480 kPA)
Southern Cross prices will increase between 10% – 15% 1st August 2022
Motor specifications:  55 kW 415V three phase FLC 93 amps 2950 rpm
Material of Construction:  CI/CI/SS and CI/SS/SS

Manufacturer’s warranty:  2 years

SKU: MJG58A-F

Description

Pentair Southern Cross end suction centrifugal motor pumps are high quality pump made to international standards and performance.
Used in water transfer, water supply, irrigation and building/factory water supply applications

Flow rate:  40 lps @ 60 meters  (31,600 gph @ 600 kPA)
Flow rate:  60 lps @ 56 meters  (47,480 gph @ 560 kPA)
Flow rate:  80 lps @ 48 meters  (63,300 gph @ 480 kPA)
Flow rate:  90 lps @ 42 meters  (71,200 gph @ 420 kPA)  End of curve

Motor specifications:  55 kW 415Vac three phase FLC 93 amps IP55 2 pole
Starting method:  Soft starter, Variable Speed Drive or Start delta starting
Material of Construction:  CI/CI/SS and CI/SS/SS
Temperature range:  0 deg C – 70 deg C
Galvanised pressed steel or fabricated base is not included in pricing however can be supplied as an option

Manufacturer’s warranty:  2 years

Additional information

Weight580 kg
Dimensions120 × 100 × 100 cm
Brand

150×125-400 55kW CI/CI/SS motor pump, 150×125-400 55kW CI/SS/SS motor pump

Motor Electrical Data

Download

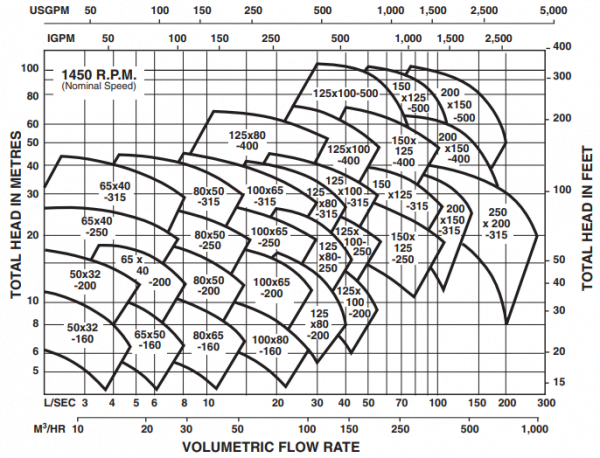

150x125-400 curve

Download

Starline dimensions

Download
