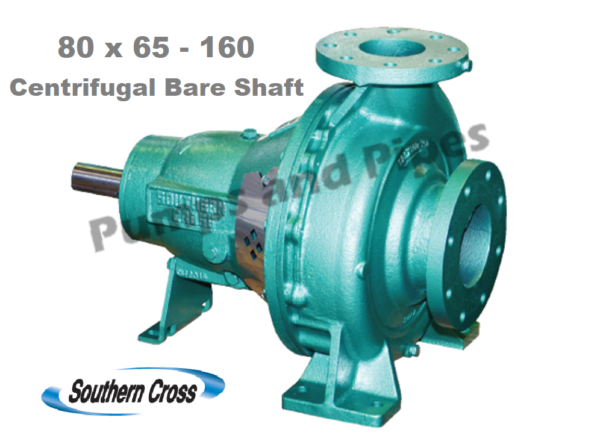

80×65-160 Southern Cross Sovereign Bare Shaft Centrifugal Pump – PSEC1A and PSEC1J

80×65-160 Southern Cross Sovereign Bare Shaft Centrifugal Pump – PSEC1A and PSEC1J

$1,740.00$1,990.00

In stock

$1,740.00$1,990.00

Clear
View cart

80 x 65-160 Southern Cross Bare Shaft End Suction Pump
Pump performance:  Variable performance
Southern Cross prices will increase between 10% – 15% Early 2023
Material of construction:  CI/CI/SS and CI/SS/SS
Pump Flanged connections:  suction 80mm T/E discharge 65mm T/E flanged
Impeller turn down – code

Manufacturer’s warranty:  2 years

SKU: PSHD3A-1-1-1

Description

80 x 65-160 Southern Cross Sovereign Bare Shaft End Suction Pump.
Application include water transfer, air conditioning transfer for cooling towers, Diesel driven irrigation pumps, dust suppression and fire protection

Pump performance:  Variable performance
Speed/flow rate/head     2500 rpm / 15 lps/ 30 meters/7.5 kW
Speed/flow rate/head    2900 rpm / 15 lps/ 44 meters/11 kW
Speed/flow rate/head    3300 rpm/ 15 lps/ 56 meters/18.5 kW
Speed/flow rate/head    3500 rpm/ 15 lps/ 65 meters/22kW

Material of construction:  CI/CI/SS and CI/SS/SS
CI/CI/SS :  casing/impeller/shaft

Pump connections:  suction 80mm Table E discharge 65mm Table E flanged
Impeller turn down – code
Mode of prime mover: Electric motor, diesel engine or pneumatic controlled
Maximum speed:  3500 rpm

Manufacturer’s warranty 2 years

Additional information

Weight120 kg
Dimensions80 × 60 × 60 cm
Size

80×65-160 CI/CI/SS bare shaft, 80×65-160 CI/SS/SS bare shaft

SC ISO SOVEREIGN TECHNICAL DATA SHEET 50Hz

Download

ISO bare shaft dimensions

Download

ISO flange dimensions

Download

ISO shaft dimenions

Download

80x65-160 curves

Download
