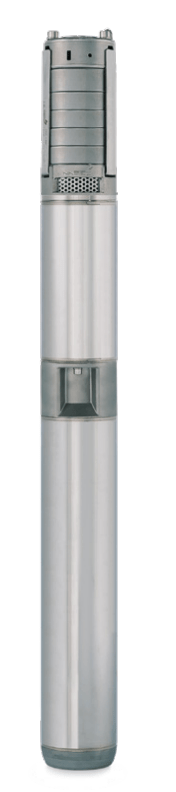

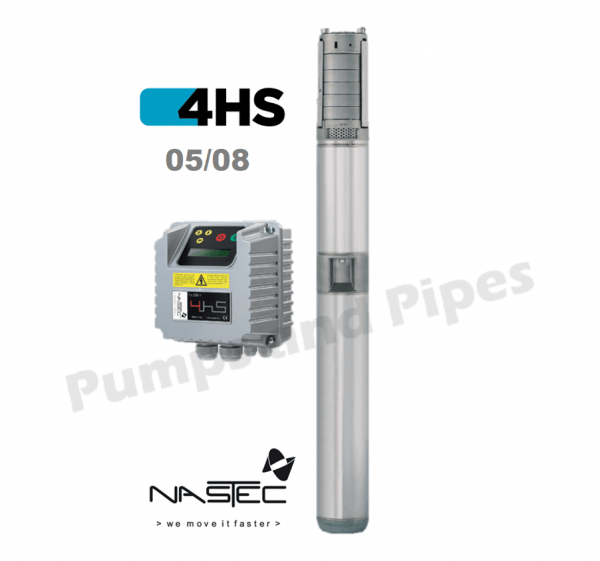

VASCO 4HS 05/08 Single Phase VFD VSD Submersible Bore Pump

VASCO 4HS 05/08 Single Phase VFD VSD Submersible Bore Pump

$3,200.00

In stock

$3,200.00

Variable Speed Submersible Pump is supply constant outlet pressure for many applications.

Pump performance: Nominal flow rate:  120 lpm @ 30 meters

Power supply: Single phase Voltage range 190 – 265 Vac FLC 9.5 A
Pump unit: Variable speed drive installed in pump unit
Material of construction: Complete AISI304 stainless steel
Diameter of pump: 99mm diameter
Manufacturer’s warranty:  2 years
Made in Italy

SKU: 4HS05-08

Description

Variable Speed Submersible Pump is supply constant outlet pressure for many applications. Pumping direct from a bore or tank to supply constant pressure for house water supply or constant pressure for irrigation.

Bore application: Variable Frequency submersible pump are used where high draw down is experienced. Being able to control outlet pressure when the water level (SWL) in your bore starts at 10 meters and draws down to 20 meters when pumping starts. As the water drops, the pump speeds up to produce more pressure.

Pump performance:     Nominal flow rate:  80 lpm @ 80 meters

Power supply:      Single phase Voltage range 190 – 265 Vac FLC 9.5 A
Pump unit:           Variable speed drive installed in pump unit

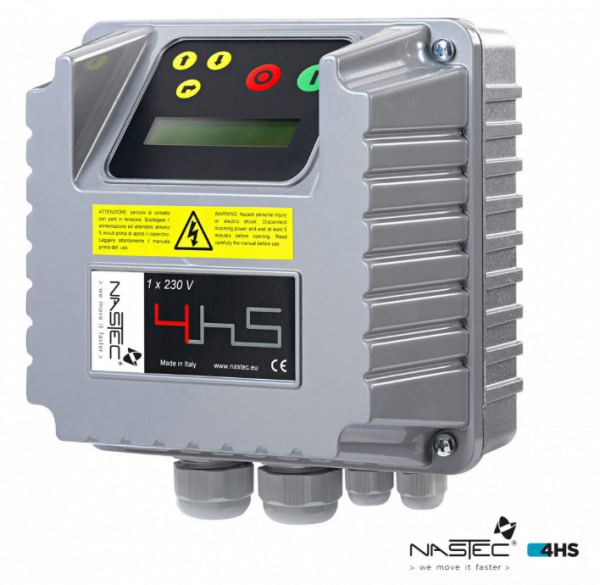

Control module:  LED display which has easy to read wording which explains pump performance and on goings
Changing parameters:       Parameters can be changed on site, no special tools or electrical devises
Material of construction:  Complete AISI304 stainless steel
Diameter of pump:             99mm diameter
Motor leads:                    Standard submersible cable and sensor cable required
Pressure transducer:     0-15V 4-20mA 0-16 bar standard transmitter
Pump protection:           Low level shut down, loss of water protection, auto re-start time adjustable

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight 28 kg
Dimensions 120 × 20 × 29 cm

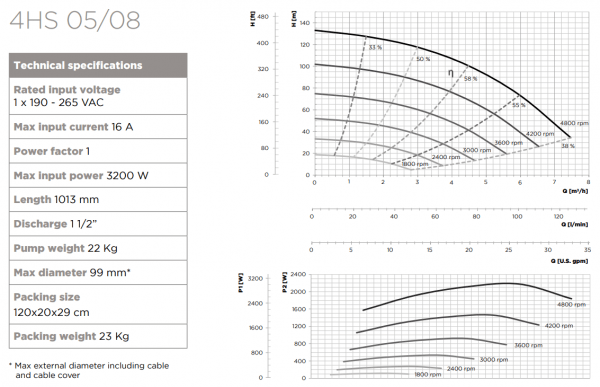

4HS 05-08 curve

Download

4HS Brochures

Download
