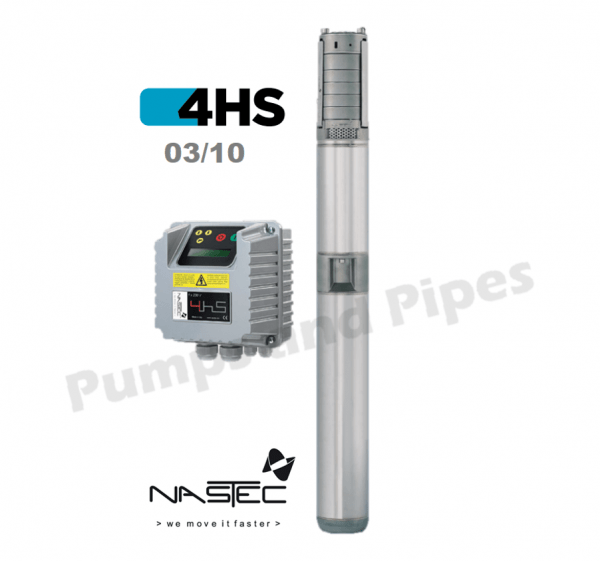

VASCO 4HS 03/10 Single Phase VFD VSD Submersible Bore Pump

VASCO 4HS 03/10 Single Phase VFD VSD Submersible Bore Pump

In stock

Variable Speed Submersible Pump is supply constant outlet pressure for many applications.

Pump performance: Nominal flow rate:  120 lpm @ 30 meters
Power supply: Single phase Voltage range 190 – 265 Vac FLC 9.5 A
Material of construction: Complete AISI304 stainless steel
Diameter of pump: 99mm diameter

Manufacturer’s warranty:  2 years
Made in Italy

SKU: 4HS03-10

Description

Variable Speed Submersible Pump is supply constant outlet pressure for many applications. Pumping direct from a bore or tank to supply constant pressure for house water supply or constant pressure for irrigation.

Bore application: Variable Frequency submersible pump are used where high draw down is experienced. Being able to control outlet pressure when the water level (SWL) in your bore starts at 10 meters and draws down to 20 meters when pumping starts. As the water drops, the pump speeds up to produce more pressure.

Pump performance:     Nominal flow rate:  50 lpm @ 120 meters

Power supply:      Single phase Voltage range 190 – 265 Vac FLC 9.5 A
Pump unit:           Variable speed drive installed in pump unit
Control module:  LED display which has easy to read wording which explains pump performance and on goings
Changing parameters:       Parameters can be changed on site, no special tools or electrical devises
Material of construction:  Complete AISI304 stainless steel
Diameter of pump:             99mm diameter
Motor leads:                    Standard submersible cable and sensor cable required
Pressure transducer:     0-15V 4-20mA 0-16 bar standard transmitter
Pump protection:           Low level shut down, loss of water protection, auto re-start time adjustable

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

Weight 28 kg
Dimensions 130 × 20 × 29 cm

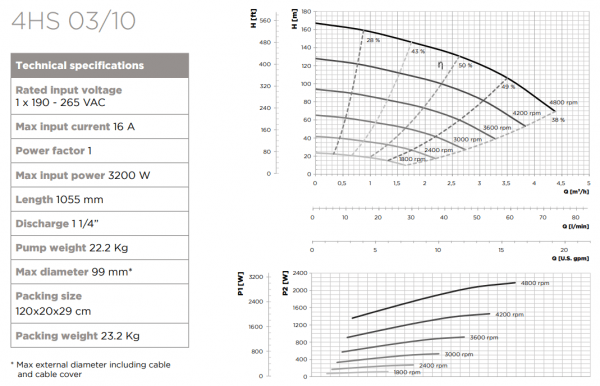

4HS 03-10 curve

Download

4HS Brochure

Download
