Description

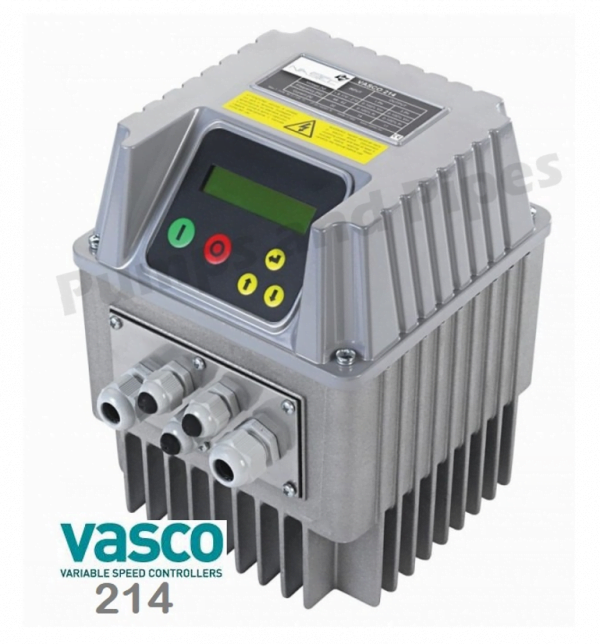

The VASCO range of variable speed drives are cost-effective, fully featured motor mounted units which can be retrofitted to many types of pumps.

Pump controlled by VFD’s:  Multistage, end suction pumps, submersible bore pumps and most centrifugal pumps

Application designs:  Constant Pressure Potable water, building water supply, Water for filtration and RO plants, commercial watering, irrigation and water transfer

Power supply:          190 – 250 Volt single phase 3.0 kW FLC 14 Amps
Motor Protection:   Adjustable over/under voltage , Adjustable overload, Adjustable max/min frequency, phase failure
Pump protection:    Dry run protection, High and Low pressure alarm,
Alarm response:      Audible alarm, Shut down and auto re-start

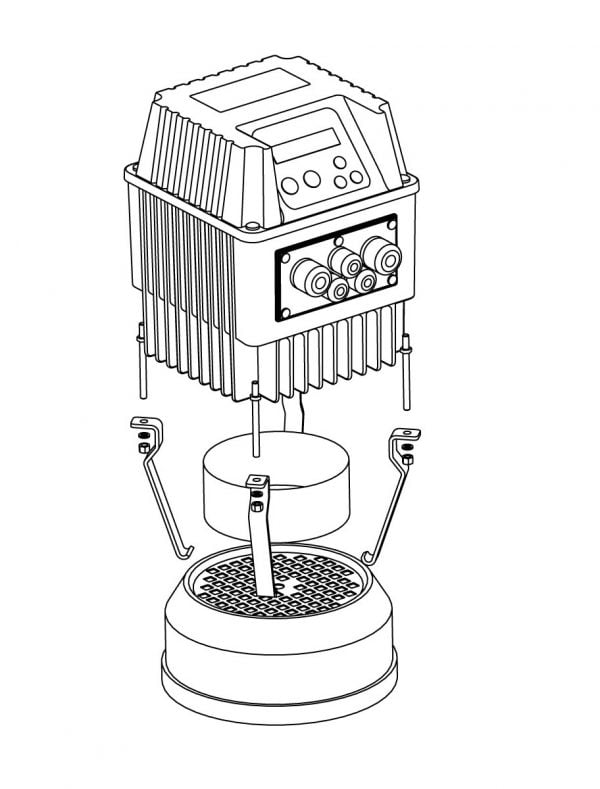

Mounting:                 Wall mounting and motor mounting options
Daisy chain:              up to four (4) units can be wired together for multi pump system
Control options:      Pressure control, level control, temperature control
Transducer:              4-20mA 0-15v many options

Programming:  Contact us for information on programming and fault analyses

Manufacturer’s warranty:  12 months
