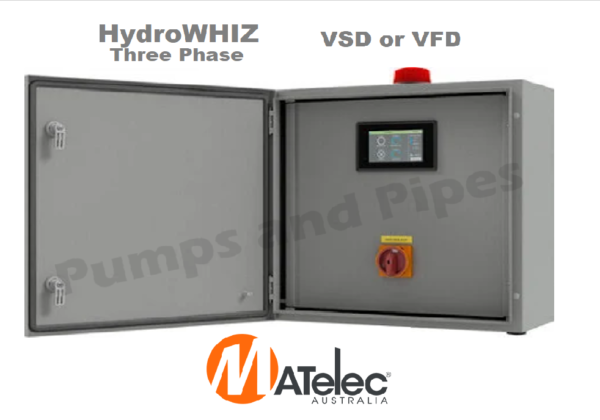

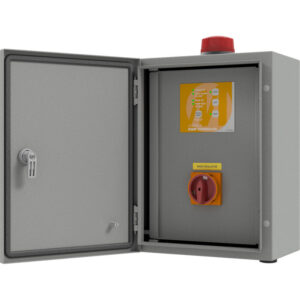

Dual Touch Screen Pump Controls – Two VSD’s Three Phase 400 Volt HydroWHIZ Panel – FPC-63220 series
$3,480.00 – $7,668.00
Control Panel for Dual pump operation which displays pressure, easy start pressure setting.
Very popular when someone needs more visual information about what’s happening in their pressure system
Building water supply, irrigation, nurseries, water transfer, Water treatment and Filtration applications
Control & interface:
HydroWHIZ colour touch screen HMI
Three phase 415/3/50 power supply
Function Features
Pump control – Control of two pumps via VFD’s
Manual control – Manual modes for system and pump with 10 minute timeout to revert back to auto mode
System types – Pressure transducer
High and low pressure – Alarm and/or shutdown on high and low pressure with out restart on high pressure
Extra requirements: pressure transmitter or transducer 4-20mA , RANGE to suit application
Manufacturer’s warranty: 12 months Made In Australia
- Description
- Additional information
- Downloads
Description
Hardware Features
Enclosure:
IP56 rated, powder coated mild steel enclosure with inner door and removable gland plate
Protection:
Pad-lockable mains power isolator switch
Circuit breaker protected low voltage control and input circuitry
Individual pump isolation
Contactor and thermal overload protection of pump motor
Din rail mounted terminal connections
Control & interface:
HydroWHIZ colour touch screen HMI (See interface features)
HydroWHIZ PCB control module
Visual (strobe) and mutable audible (buzzer) alarms
Inputs:
Three phase (400Vac) power supply
Analog 4-20mA input for level transducer
Up to 8x digital 24Vdc inputs for low, stop, start, standby start and high float switches
Thermal switch inputs per pump (three phase only)
Outputs:
BMS volt free output for common fault
Analog 0-10V output (mirrors analog input)
Output for solenoid valve available on request
Modbus RTU Serial RS485 connections for SCADA
Function Features
Pump control – Control of two pumps
Pump limiting – For limiting max flow or power requirements
Manual control – Manual modes for system and pumps with 10 minute timeout to revert back to auto mode
System type – pressure transducer 0r ultra sonic
Fault Protection
High and low level – Alarm and/or shutdown on high and low level features automatic restart attempts
Pump anti-seize protection – Runs pump periodically during low use to prevent seizing
Maximum run protection – Activates after pump runs at max speed for 30 mins, protecting the system in the event of a burst pipe, with automatic restart attempts
Feedback signal fault protection – Shuts down pump in the event of a transducer failing
Pump overload protection – Shuts down pump on overload, with automatic duty alternation
Pump thermal switch protection – For three phase pumps
Interface Features
Main screen with system status, auto/off/manual modes
Pump screens with status, logged data and auto/off/manual control
Alarms screens with mute/reset, date & time stamped historical faults
Logged data with system event & fault counts, pump starts, run hours
Analog feedback value trend graph
Streamlined, user friendly system setup process
System diagnostics for easy fault finding, factory reset
Manufacturer’s warranty: 12 months Made In Australia
Additional information
| Weight | 20 kg |
|---|---|
| Dimensions | 40 × 40 × 40 cm |
| Size | Dual pumps 1.5kW 415/3/50 using two VFD's and touch screen, Dual pumps 11.0kW 415/3/50 using two VFD's and touch screen, Dual pumps 15.0kW 415/3/50 using two VFD's and touch screen, Dual pumps 2.2kW 415/3/50 using two VFD's and touch screen, Dual pumps 22.0kW 415/3/50 using two VFD's and touch screen, Dual pumps 4.0kW 415/3/50 using two VFD's and touch screen, Dual pumps 5.5kW 415/3/50 using two VFD's and touch screen, Dual pumps 7.5kW 415/3/50 using two VFD's and touch screen |
