Description

Function Features

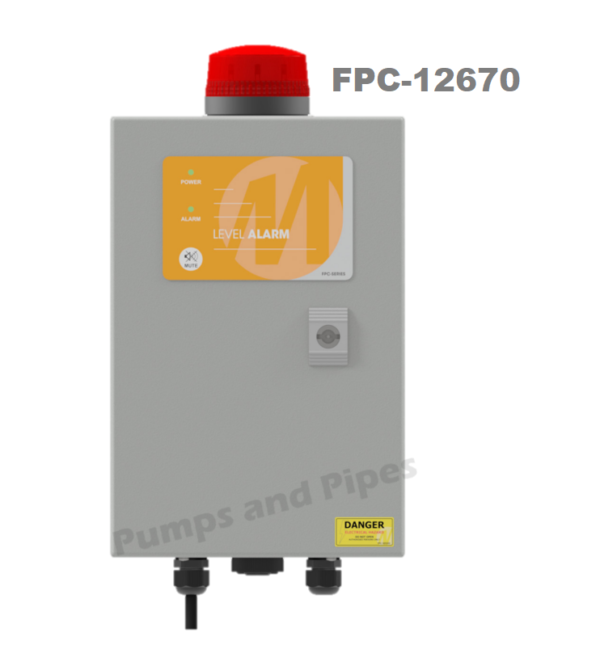

Level alarm – Provides warning indication and alarm when a water storage tank is empty or full

Auto-silencing alarm – If not muted, the buzzer will silence after 5 minutes, then sound briefly every 5 minutes ( this feature can be disabled if a continuous alarm is required )

Product Features

ENCLOSURE: IP54 rated, powder coated mild steel enclosure with removable gland plate
PROTECTION: Low voltage control and input circuitry
ALARMS: Visual (strobe) and audible (buzzer) alarms
CONTROL & INTERFACE: Level alarm for keypad interface
Indicator lights for power on, level alarm

Alarm mute/reset/test button
Level alarm PCB control module
INPUTS: Digital 12Vdc input for float switch or conductivity probe

Single phase (230Vac) power supply

OUTPUTS: BMS volt free output for common fault (No & NC)
INCLUDED with PANEL: 10 Amp 3 pin 1.5 power supply lead

Float switch not included, recommended float switch MODEL 9006

Manufacturer’s warranty:  12 months
