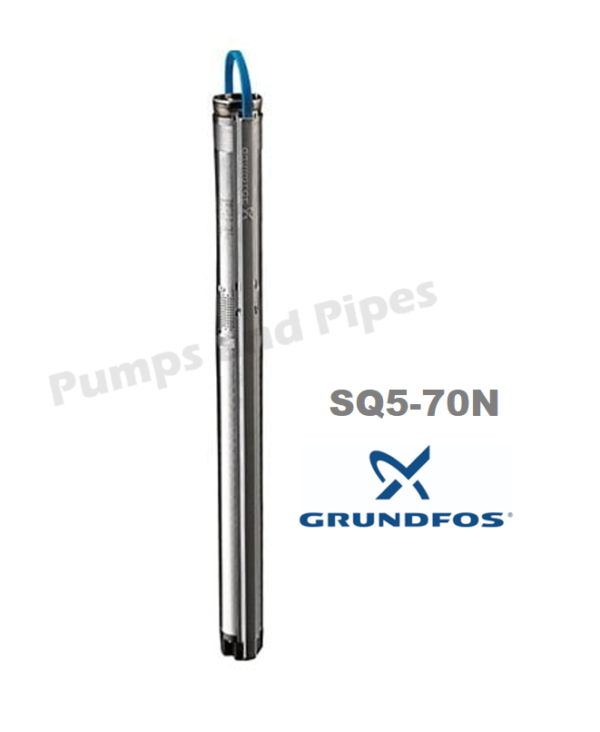

SQ5-70N Grundfos 3inch Submersible Bore Pump Unit Single Phase 240volt 2 Wire
$2,002.00
SQ5-70N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ5-70N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.
Flow rate: 76 lpm @ 78 metres (1000 gph)
Motor details: 1.85 kW single phase FLC 10.7 A
Pump end details: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
SQ5-70N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ5-70N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.
Flow rate: 38 lpm @ 95 metres (500 gph)
Flow rate: 76 lpm @ 78 metres (1000 gph)
Flow rate: 98 lpm @ 57 metres (1300 gph)
Power supply: 230Volt AC single phase
Motor details: 1.85 kW 50HZ 10,700rpm, IP68 rated FLC 10.7 A max submergence 100m
Pump end details: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm
Manufacturer’s warranty: 2 years Made in Mexico
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 80 × 10 × 10 cm |
| Brand | GRUNDFOS |
