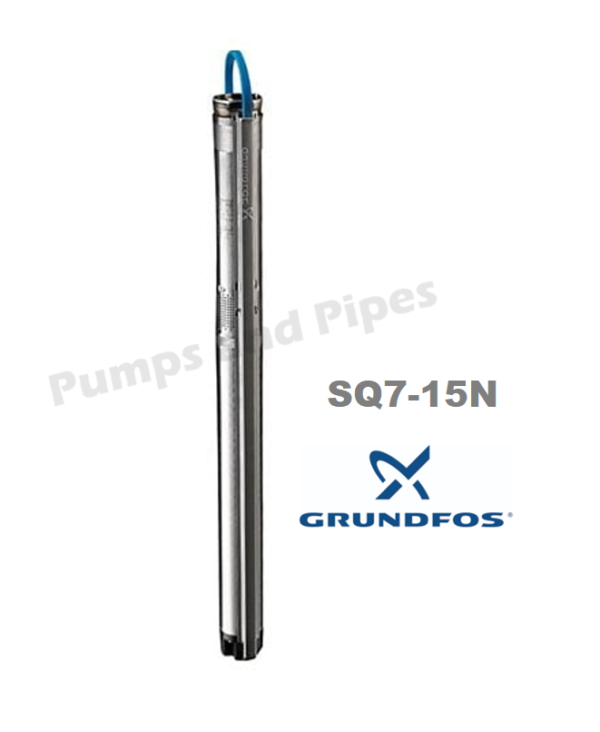

SQ7-15N Grundfos 3inch Submersible Bore Pump Unit

SQ7-15N Grundfos 3inch Submersible Bore Pump Unit

$1,450.00

In stock

$1,450.00

Reviews Summary by AI:

SQ7-15N is suitable for domestic water supply, tank filling and irrigation
SQ7-15N offers the following features dry running protection and soft starting
Flow rate:  76 lpm @  15 meters   (1000 gph)
Power supply:   230Volt AC single phase
Motor details:  0.7 kW single phase FLC 3.1 A
Pump end details: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years

SKU: 96160432

Description

SQ7-15 is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ7-15 offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  38 lpm @  17 meters    (500 gph)
Flow rate:  76 lpm @  15 meters   (1000 gph)
Flow rate:  133 lpm @  5 meters   (1750 gph)

Power supply:   230Volt AC single phase
Motor details:  0.7 kW 50HZ 10,700rpm, IP68 rated FLC 3.1A max submergence 100m
Pump end details: 40mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico

Additional information

Weight8 kg
Dimensions90 × 10 × 10 cm
Brand

GRUNDFOS

SQ-N Brochure

Download
