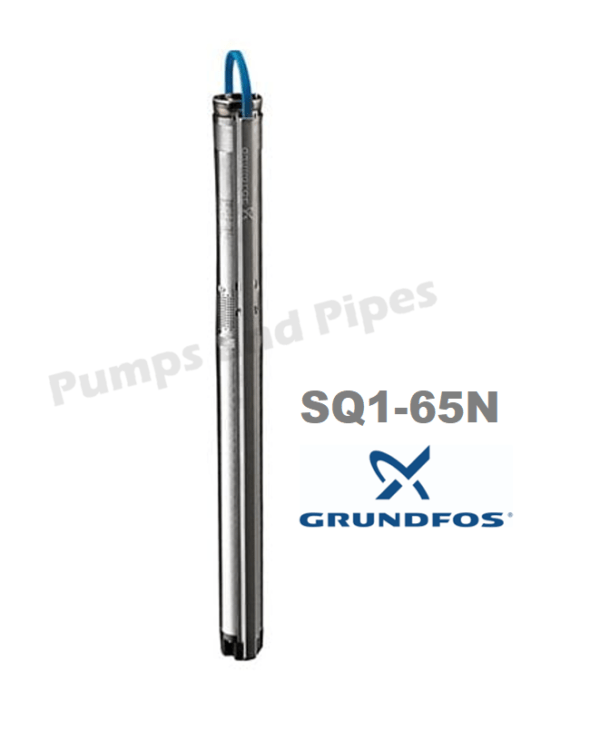

SQ1-65N Grundfos 3inch Submersible Bore Pump Unit

SQ1-65N Grundfos 3inch Submersible Bore Pump Unit

$978.00

In stock

$978.00

SQ1-65N is suitable for domestic water supply, tank filling and irrigation
SQ1-65N offers the following features dry running protection and soft starting
Flow rate:  16 lpm @ 71 meters   (220 gph)
Power supply:   230Volt AC single phase
Motor details:  0.7 kW single phase FLC 4.3A
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years

SKU: 96160405

Description

SQ1-65N is suitable for a variety of applications including domestic water supply, tank filling and irrigation
SQ1-65N offers the following features dry running protection, soft starting, over and under voltage protection, overload protection and over temperature protection.
SQ range can be run from single phase power supply or generator power supply.

Flow rate:  6.6 lpm @ 90 meters    (88 gph)
Flow rate:  16 lpm @ 71 meters   (220 gph)
Flow rate:  23 lpm @ 50 meters   (300 gph)

Power supply:   230Volt AC single phase
Motor details:  0.7 kW 50HZ 10,700rpm, IP68 rated FLC 4.3A max submergence 100m
Pump end details: 32mm FI BSP outlet
Material of construction: AISI316 stainless steel
Electrical cable: contact us for cable selection
Maximum diameter of pump: 74mm
Minimum diameter of bore casing: 76mm

Manufacturer’s warranty:  2 years  Made in Mexico

Additional information

Weight 6 kg
Dimensions 80 × 10 × 10 cm

SQ-N Brochure

Download

SQ1N curve and tech data

Download
