Description

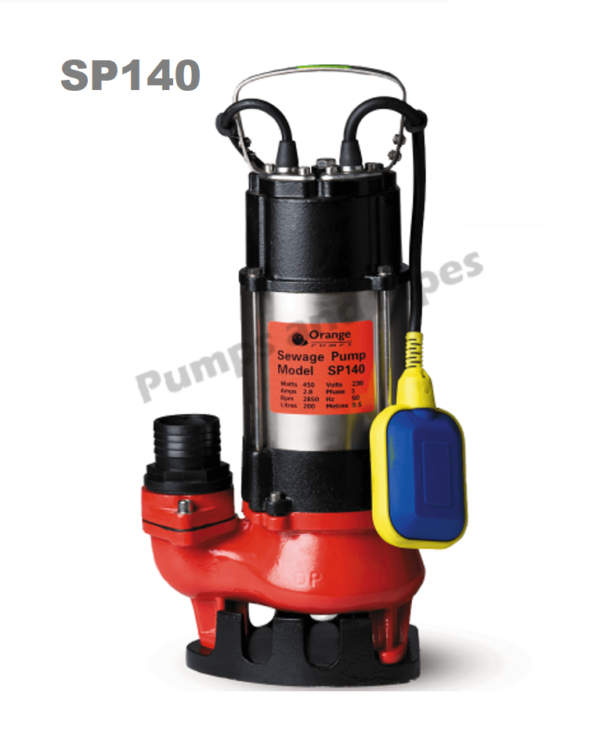

The Submersible Pump Range has been developed to provide a reliable, efficient, cost-competitive water management system.
Eletric Motors have been designed to operate through a wide voltage range at a full load while maintaining a low temperature.
Low Temperate helps preserve the bearings, motor windings, capacitor and seals.
Vortex Action generates a centrifugal force that can move small solids in the solution.
Pump Performance: 50 lpm @ 8 metres
Pump Performance: 100 lpm @ 6.3 metres
Pump Performance: 150 lpm @ 4.3 metres
Pump Performance: 200 lpm @ 2 metres
Application:
Vortex Impeller
Dual Carbon Ceramic Seals in Oil Bath
6-metre H07RN-F electrical cable
Heavy-Duty, wide voltage motor
Three seal motor protection
Sumps, Cellars, Greywater, Drainage and Sullage.
Liquid Guide:
Soft solids-18mm
Solids Concentration-10%
Temp Maximum-45Deg
Temp intermittent-60Deg

Manufacturer’s Warranty: 2 Years

Additional information
