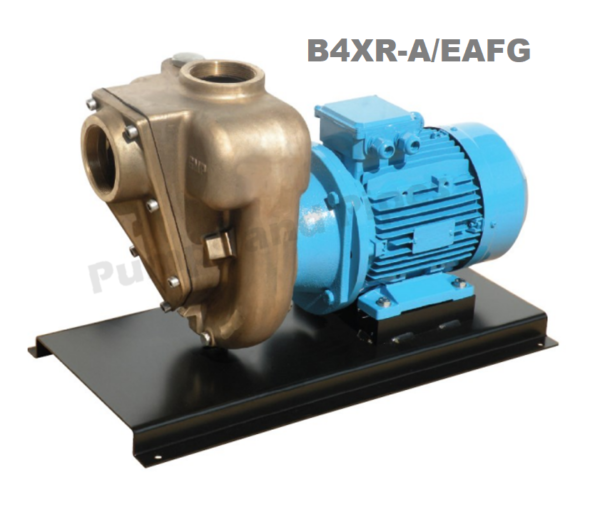

B4XR-A/EAFG Seawater Self Priming 1500lpm @ 24metres 15.0kW Nickel Aluminium Bronze 415Volt Pump Unit

$17,220.00

In stock

$17,220.00

Reviews Summary by AI:

B4XR-A/EAFG Seawater pump for bilge pump out, salvage pumping, marine air conditioning, sea water transfer

Pump performance:  1500 lpm @ 240 kPA  (24 metres)

Self primes to 6 metres
Material of construction:  Nickel Aluminium Bronze
15.0kw 400/3/50 FLC 28.0 Amps  IP55
Solid size 39mm
pump connections:  100mm FI BSP suction and discharge
Pump unit supplied on steel base
Manufacturer’s warranty:  3 years

SKU: B4XR-A/EAFG

Description

B4XR-A/EAFG Seawater NI AL Bronze pump for bilge pump out, salvage pumping, sea water transfer

Pump performance:  zero lpm @ 310 kPA  (31 metres)
Pump performance:  1000 lpm @ 290 kPA  (29 metres)
Pump performance:  1500 lpm @ 240 kPA  (24 metres)
Pump performance:  2000 lpm @ 150 kPA  (15 metres)

Self primes to 6 metres
Open impeller with 39mm through
Material of construction:  Nickel Aluminium Bronze
15.0kw 400/3/50 FLC 27.0 Amps   IP55
Solid size 39mm
pump connections:  100mm FI BSP suction and discharge
Pump unit supplied on steel base

Manufacturer’s warranty:  3 years



Additional information

Weight240 kg
Dimensions100 × 70 × 90 cm

GMP bronze tech data

Download
