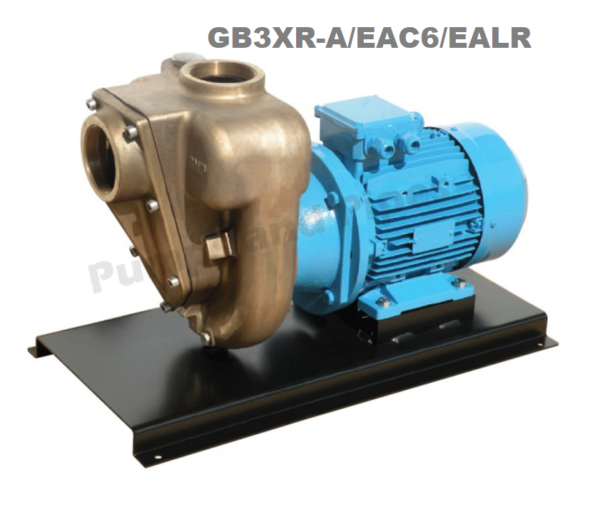

Corrosive 800 lpm @ 18m 5.5kW Cast 316 Stainless Steel 415Volt Pump Unit – GB3XR-A/EAC6/EALR
$9,510.00
GB3XR-A/EAC6/EALR Corrosive Application pump for bilge pump out, salvage pumping, marine air conditioning, sea water transfer
Pump performance: 500 lpm @ 240 kPA ( 24 metres)
Pump performance: 1000 lpm @ 140 kPA ( 14 metres)
Self primes to 6 metres
Material of construction: Cast 316 Stainless Steel
5.5kw 400/3/50 FLC 12.0 Amps IP55
Solid size 24mm
pump connections: 80mm FI BSP suction and discharge
Pump unit supplied on steel base
Manufacturer’s warranty: 3 years
- Description
- Additional information
- Downloads
Description
GB3XR-A/EAC6/EALR Corrosive Application Cast 316 Stainless Steel pump for bilge pump out, salvage pumping, sea water transfer
Pump performance: zero lpm @ 280 kPA (28 metres) shut off head
Pump performance: 500 lpm @ 240 kPA (24 metres)
Pump performance: 1000 lpm @ 140 kPA (14 metres)
Pump performance: 1300 lpm @ 60 kPA (6 metres) end of curve
Self primes to 6 metres
Open impeller with 24mm through
Material of construction: Cast 316 Stainless Steel
5.5kw 400/3/50 FLC 12.0 Amps IP55
Solid size 24mm
pump connections: 80mm FI BSP suction and discharge
Pump unit supplied on steel base
Manufacturer’s warranty: 3 years
Additional information
| Weight | 80 kg |
|---|---|
| Dimensions | 50 × 80 × 80 cm |
