MQ600TD/80SKM Diesel Engine 60kW Deutz Skid Mounted 150mm 6″ Pump set 80HP – $49,400.00 including GST

MQ600TD/80SKM Diesel Engine 60kW Deutz Skid Mounted 150mm 6″ Pump set 80HP – $49,400.00 including GST

$7,400.00$49,400.00

In stock

$7,400.00$49,400.00

Clear
View cart

Rugged diesel powered 6” trailer mounted trash pump is loaded with features.
Pump performance: 4000 lpm @ 30 metres
Pump performance: 5000 lpm @ 25 metres
Capable of self-priming from 7.6 metres
60kW (80HP) Deutz electric start diesel engine
Engineered for contractors, rugged and dependable, these diesels powered trash.
Pump IS ideal for de-watering applications with high solid content.
Manufacturer’s Warranty: 3 Years

SKU: MQ600TD

Description

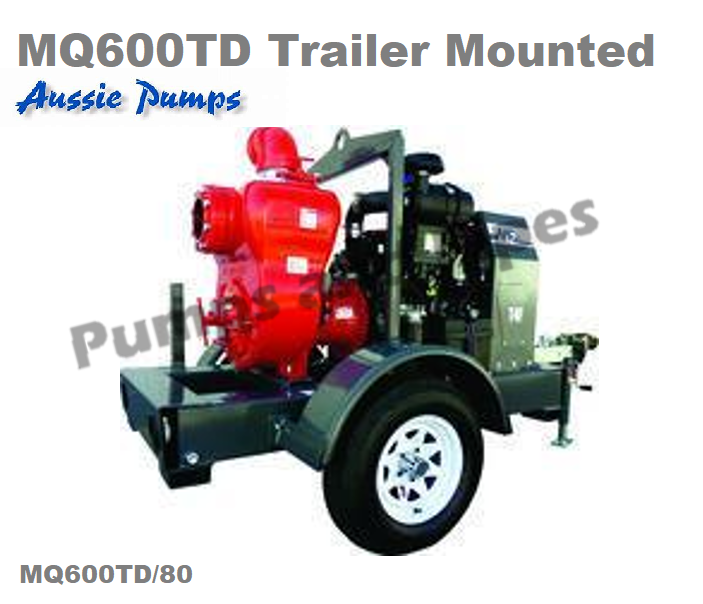

This rugged diesel powered 6” trailer mounted trash pump is loaded with features.
Huge 6000 litres per minute flow with 6-inch suction and discharge ports, with shut off head of 46 metres
Capable of self-priming from 7.6m, it is powered by a reliable 80HP Deutz air cooled, four-cylinder diesel engine with electric start.
Engineered to meet the requirements of professional contractors, rugged and dependable, these diesels powered trash.
pumps are ideal for de-watering applications with high solid content.
The simple, self-priming design makes them fast to set up and easy to maintain.
Applications:
De-watering
Tailing dam pump out
Public works
Slurry pumping
Flood mitigation
Sewage Transfer
Features:
Pump Suction connection: 6″150mm F BSP flanged suction inlet
Pump Discharge connection: 6″150mm F BSP discharge outlet

Pump performance: 4000 lpm @ 30 metres
Pump performance: 5000 lpm @ 25 metres
Capable of self-priming from 7.6 metres

Built in safety shutdown for low oil pressure, oil temperature & V-belt failure.
Oil lubricated tungsten titanium carbide seals standard.
Wear resistant volute and impeller ensures minimal clogging and can handle solids up to 76mm (3”) in diameter.
Easy clean-out port can be removed in seconds.
90° discharge elbow can be rotated based on job requirements.
Heavy duty non-registrable site trailer with tow end jack stand or skid mount options.
Control panel shock mounted in water resistant housing, includes hour meter, ammeter, tachometer and alternator failure light.
Pump and engine is skid mounted with built in fuel tank
152 litre fuel tanks incorporated in base of skid.
Weighs 960 kg, and it has a lifting bar as standard equipment (skid mounted version)
Strainer included to prevent entry of oversized solids
Bearing and mechanical seal sight glasses
Marine type battery box
Convenient integrated manual box
Manufacturer’s Warranty: 3 Years

Additional information

Weight960 kg
Dimensions300 × 170 × 200 cm
Size

Galv Offroad Registable Trailer-7'x 5'6'' Dual Action Max Load 1.6tonne, Mine Spec-E/Stop, Muffler Protection, Fire Extinguisher, Warning Light, Battery Isolation, MQ600TD Diesel Engine 60kW Deutz Skid Mounted Pump set

MQ600TD data sheet

Download
