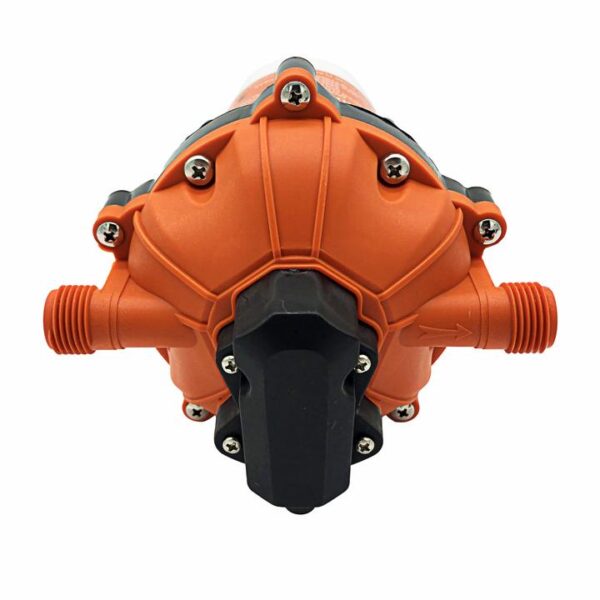

SEAFLO 51 Series EXTREME 24Volt DC Diaphragm Pump For Boats Vans & RV’s

SEAFLO 51 Series EXTREME 24Volt DC Diaphragm Pump For Boats Vans & RV’s


In stock


Reviews Summary by AI:

SEAFLO 51 series EXTREME 24Vdc pressure system
Pump performance: 18.9 lpm @ 70psi
Self priming diaphragm pump
Applications; RV, boating pump or water supply
Pressure switch control cut in/cut out

Manufacturer’s warranty:  2 years

Availability: Available on backorder SKU: SFDP2-050-070-51X


SEAFLO 51 series automatic diaphragm pump for your boat, RV or water supply with 3 year warranty and includes a free filter.

Pump performance:  18.9 lpm @ 70psi

Precise pressure control and stable performance

Low starting pressure reduces cycling

Good heat dissipation

Longer pump life

Can supply up to four fixtures

Run dry capable for normal workloads

Quiet operation

On-demand only or combine with by-pass choice

Fresh water or salt water available

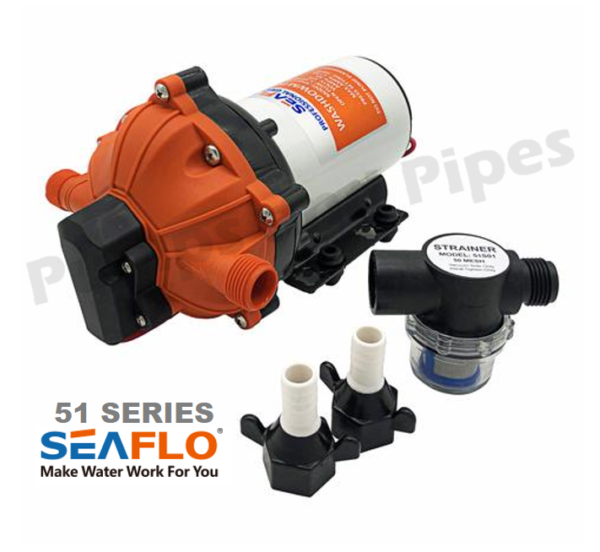

Includes: 2 x 1/2″ barb fitting, rubber mounts
Housing Material: Nylon/Polypropylene
Diaphragm Material: Santoprene
Valve/Seal Material: EPDM/Viton
Voltage: 24Vdc FLC 8.0 amps
Control Type: Pressure Switch
Duty Cycle: Intermittent
Liquid Temperature: 60°Celcius MAX
Inlet/Outlet Ports: ½” MNPT
 Priming Capabilities: 1.8m suction lift

Manufacturer’s warranty:  2 years

Additional information

Weight5 kg

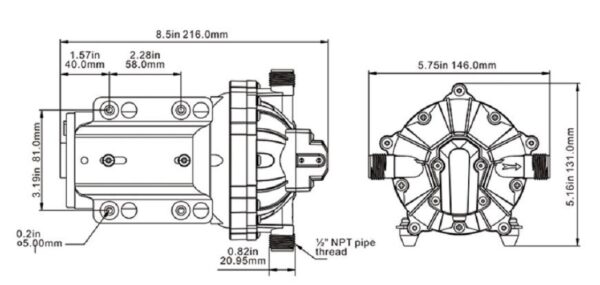

Dimensions30 × 17 × 15 cm


SEAFLO 51 series fact sheet
