SEAFLO 22 Series 24Vdc Pressure Pump 5.0lpm For Boats Vans & RV’s 24Volt

SEAFLO 22 Series 24Vdc Pressure Pump 5.0lpm For Boats Vans & RV’s 24Volt


In stock


Reviews Summary by AI:

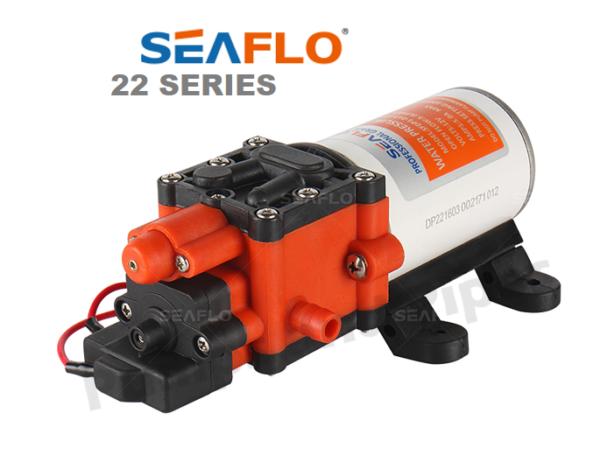

SEAFLO 22 series 24Volt DC pressure pump

Pump performance:  5.0lpm @ 100 psi
Pressure switch controlled on/off

Manufacturer’s warranty:  3 years

SKU: SFDP2-013-100-22


SEAFLO 22 series automatic pressure pump for your boat, RV or water supply with 3 year warranty and includes a free filter.

Pump performance:  5.0 lpm @ 100 psi

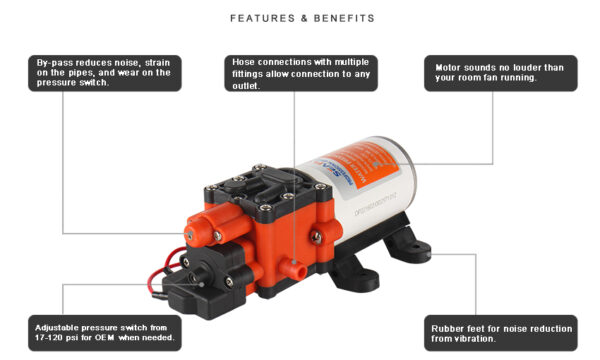

Positive Displacement Pump
Quiet & Smooth Operation
Industry Standard mount pattern
Threaded connections with multiple easy connect fittings suitable for almost an outlet
Corrosion resistant valves
Rubber mounts for noise reduction


RV and Marine applications
Includes: 2 x 12mm barb fitting, 1 x 12mm filter, rubber mounts
Housing Material: Nylon/Polypropylene
Diaphragm Material: Santoprene
Valve/Seal Material: EPDM/Viton
Voltage: 24V DC
Max Draw: 3.0 amps
Control Type: Pressure Switch
Duty Cycle: Intermittent
Litres per Minute: 5.0lpm
Max Pressure: 100 PSI
Liquid Temperature: 60 degC MAX
Inlet/Outlet Ports:  12mm MI BSP
Priming Capabilities: 1.8m suction lift
Overall Dimensions: 125mm (W) x 111mm (H) x 202.5mm (D)
Weight: 1.18kg

Manufacturer’s Warranty:  3 years

Additional information

Weight4 kg
Dimensions27 × 14 × 15 cm
