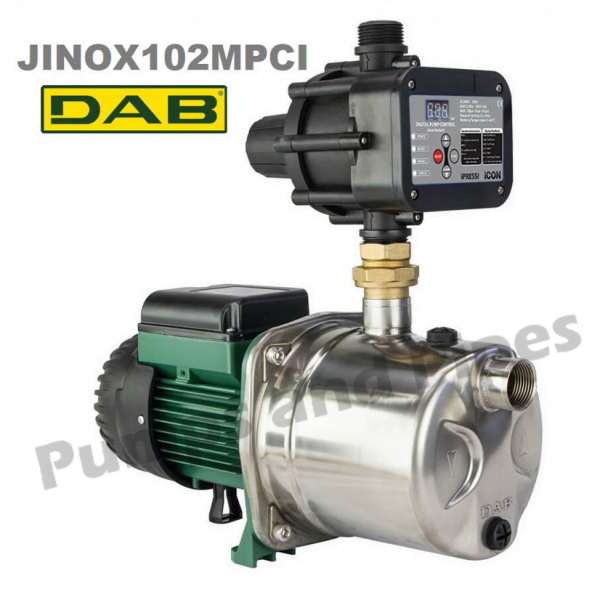

DAB JINOX 102 MPCI Pressure Pump With Controller

DAB JINOX 102 MPCI Pressure Pump With Controller

$605.00

In stock

$605.00

Self Priming Pressure Unit for household, rainwater and water transfer applications

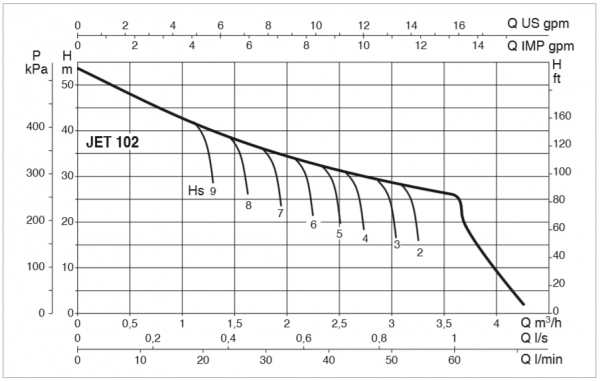

Pump performance:
  40 lpm @ 400 kPa  4 taps

Power supply: 0.75 kW single phase 240V
All MPCI models include an automatic restart pump controller
AS/NZS 4020 Approved for Drinking Water
Manufacturer’s Warranty:  2 years    Made in Italy



SKU: JINOX102

Description

Stainless Steel Self Priming Jet Pumps

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

Pump performance :   40 lpm @ 400 kPa   4 taps

Power supply:  0.75kW 1.0HP 240V Single Phase

  • Fully adjustable pressure switch to reduce pressure fluctuations
  • Self priming jet pump able to lift water up to 9 meters
  • Stainless steel pump body for bacteria and corrosion resistance
  • Brass non-return valve and fittings for strength and durability
  • Pressure gauge to aid pressure switch adjustments
  • Replaceable TEFC motor with air gap to stop seal failure water entry

    AS/NZS 4020 Approved for Drinking Water
    Manufacturer’s Warranty:  2 years    Made in Italy



Additional information

Weight 9.6 kg
Dimensions 40 × 20 × 25 cm

DAB Pumps Product Brochure

Download
