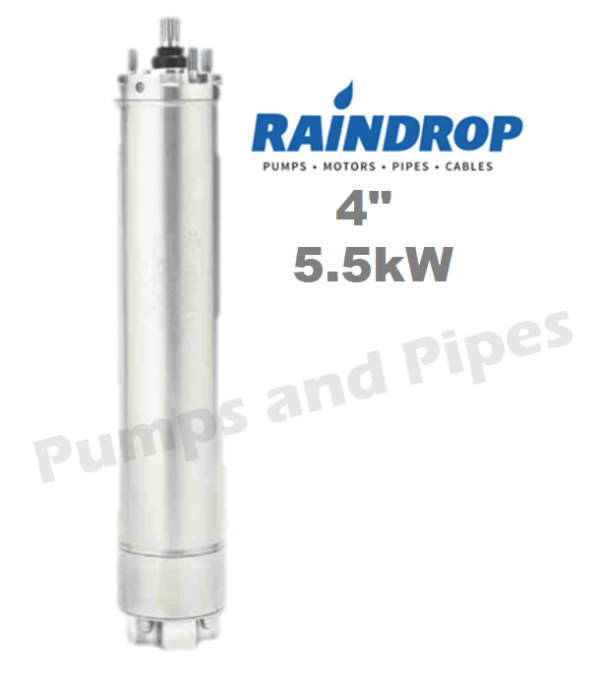

4inch 5.5kW 7.5hp Three Phase Submersible Pump Motor Raindrop – Suits Grundfos Lowara Franklin Pump Ends

4inch 5.5kW 7.5hp Three Phase Submersible Pump Motor Raindrop – Suits Grundfos Lowara Franklin Pump Ends

$1,380.00

In stock

$1,380.00

Reviews Summary by AI:

5.5kW 7.5hp three phase submersible bore motor
4”, 415 Voltage 50hz water filled
NEMA standard
Stainless Steel AISI304 grade
Will fit all major brands of submersible pump ends
Manufacturer’s warranty:  2 years

SKU: RDSM455

Description

4″ water lubricated submersible motor to suit all brands of pump ends

4″ RAINDROP Water Lubricated submersible bore motor
Coupling dimensions as per NEMA standard.
Degree of protection : Ip68
Max water temperature : 35° C
Start per hour : 30 time (Max.)
Allowable voltage variation +6% – 10%
Motor shaft of Stainless Steel
Stator shell of Stainless Steel
Max depth immersion : 200 M
Mounting : vertical
Motor Cable length : 3 Meter (3 Core / 4 Core)
Coolant : Clear Water

Manufacturer’s warranty:  2 years

Additional information

Weight40 kg
Dimensions100 × 20 × 20 cm
Brand

Raindrop

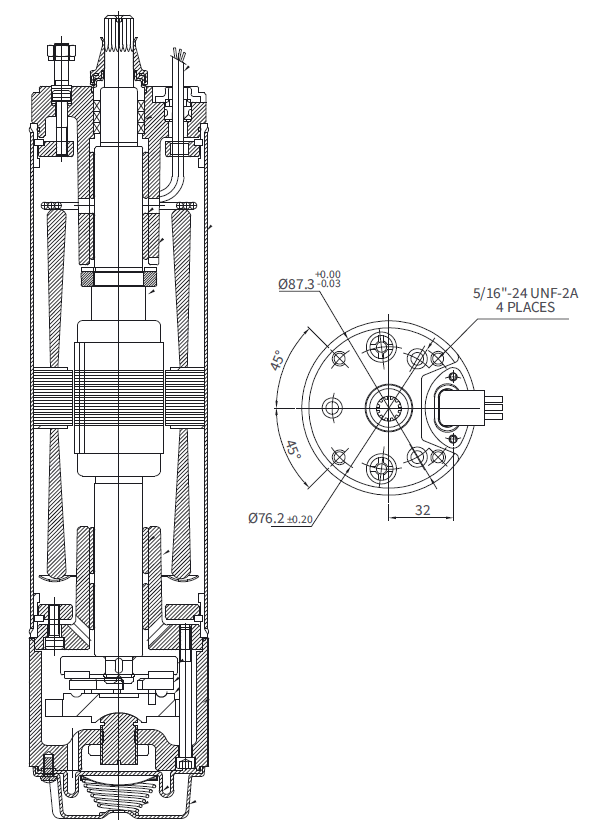

SS Raindrop Sub Motor 4inch Data Sheet

Download
