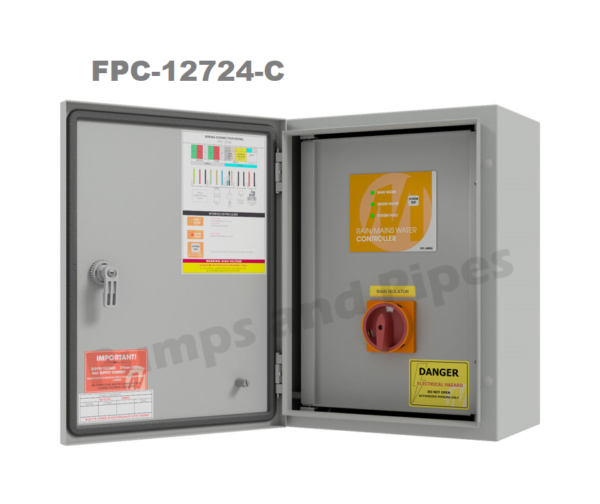

Enclosure:
IP56 weatherproof rating
Powder coated mild steel
Inner door and removable gland plate
Protection:
Padlockable mains power isolator switch
Circuit breaker protected low voltage control and input circuitry
Contactor and thermal overload protection of pump

Control & interface:
Electronic keypad
Indicator lights for rain/mains water and system fault
System test button for checking pump and valve function

Inputs:
2x digital 12Vdc inputs for low level float switch and working pressure switch
Outputs:
1x pump supply output
12Vdc output for solenoid valve

Included with panel:
25mm female/female 12Vdc pulse latching solenoid valve

Function Features

Operation:

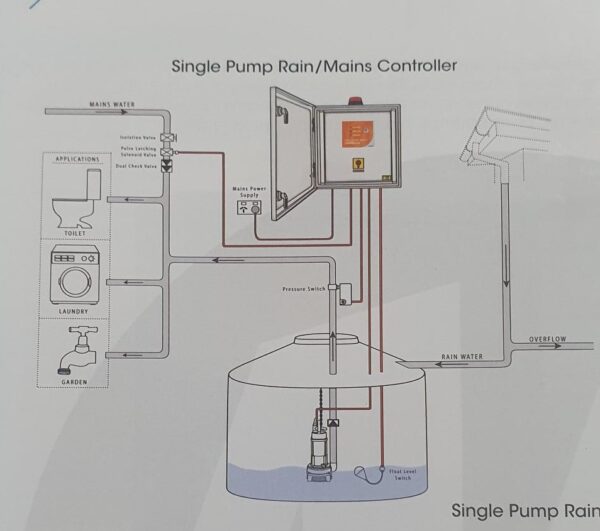

If rain water becomes available, the controller pulse closes the mains water valve and the pressure switch will control the pump
In the event of rain water depletion, pump fault or power failure, the controller shuts off the pump and pulses the valve open for mains water use

Fault protection:
Pump overload shut-down

Optional Modifications
316 stainless steel enclosure
Generator input socket and automatic changeover
Alternative version available with conductivity probe inputs and tank level display (FPC-12726 and FPC-12727)

Other valve sizes available

Manufacturer’s warranty: 12 months …. Made in Australia
