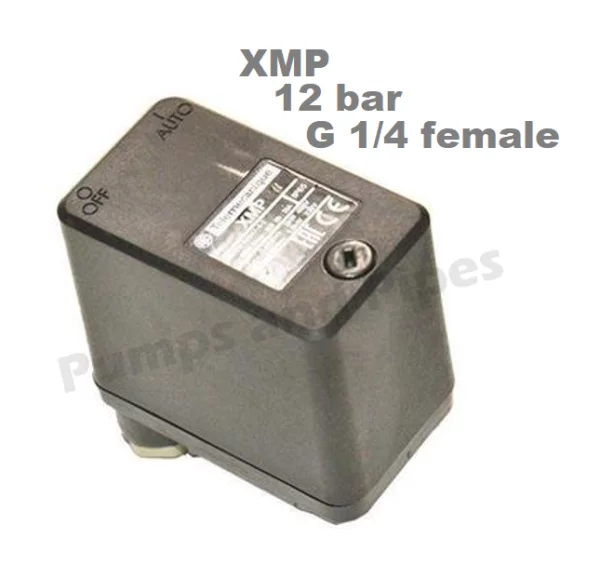

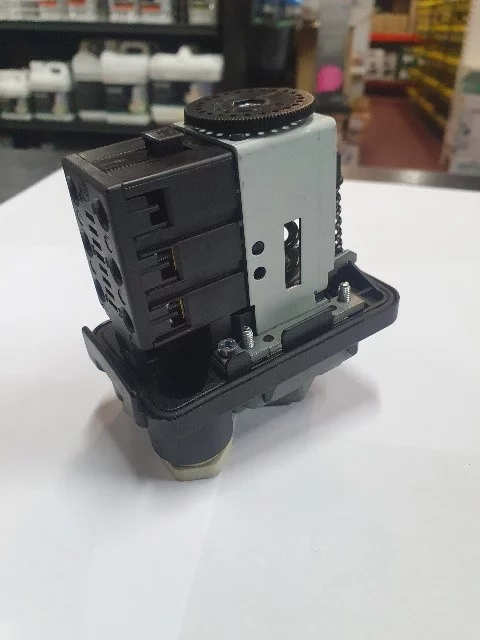

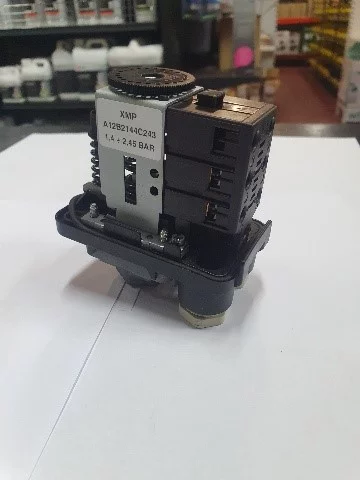

Pressure Switch XMP12 Telemecanique Switch For Pressure Pumps XMPA12C2141 – Single Phase – Three Pole – Replaced XMPA12B2142
$88.00
3 pole Pressure Switch type of operation between 2 set points
Pressure switch XMP – 12 bar – G 1/4 female
Pressure switch rating: cut out to 12 bar
Amperage: single phase 1.5kW 230v 15 amps DOL
Amperage: three phase 4kW
Fluid connection type G 1/4 (female)
Fresh water (0…70 °C)
XMPA12B2142 gives the option to use as Single Phase AND Three Phase.
Manufacturer’s warranty: 12 months
- Description
- Additional information
- Downloads
Description
Pressure switch type of operation between 2 set points
Model : XMPA12B2142 (replaced by new model XMPA12C2141)
Pressure switch XMP – 12 bar – G 1/4 female
Pressure switch rating: cut out to 12 bar
Amperage: single phase 1.5kW 230v 4.0kW 400Volt 15 amps DOL
Fluid connection type G 1/4 (female) conforming to ISO 228
Controlled fluid Air (0…70 °C)
Fresh water (0…70 °C)
Sea water (0…70 °C)
Cable entry 2 entries incorporating Pg 13.5 plastic cable gland, cable outer diameter: 9…13 mm conforming to NF C 68-300
Contacts type and composition 2 NC snap action
Electrical connection Screw-clamp terminals, clamping capacity: minimum : 2 x 4 mm²
Electrical circuit type Power circuit
Manufacturer’s warranty: 12 months
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 5 × 5 × 5 cm |
