Multi Level Float Tree – Three (3) Floats Plus Weight – Sewage – Storm Water – Level Control
$382.00 – $431.00
The Multi Float Tree is a unique combination of floats, configured in a way that minimises installation/setup time and overcomes the many issues associated with float switch installations.
Manufacturer’s warranty: 12 months
- Description
- Additional information
- Downloads
Description

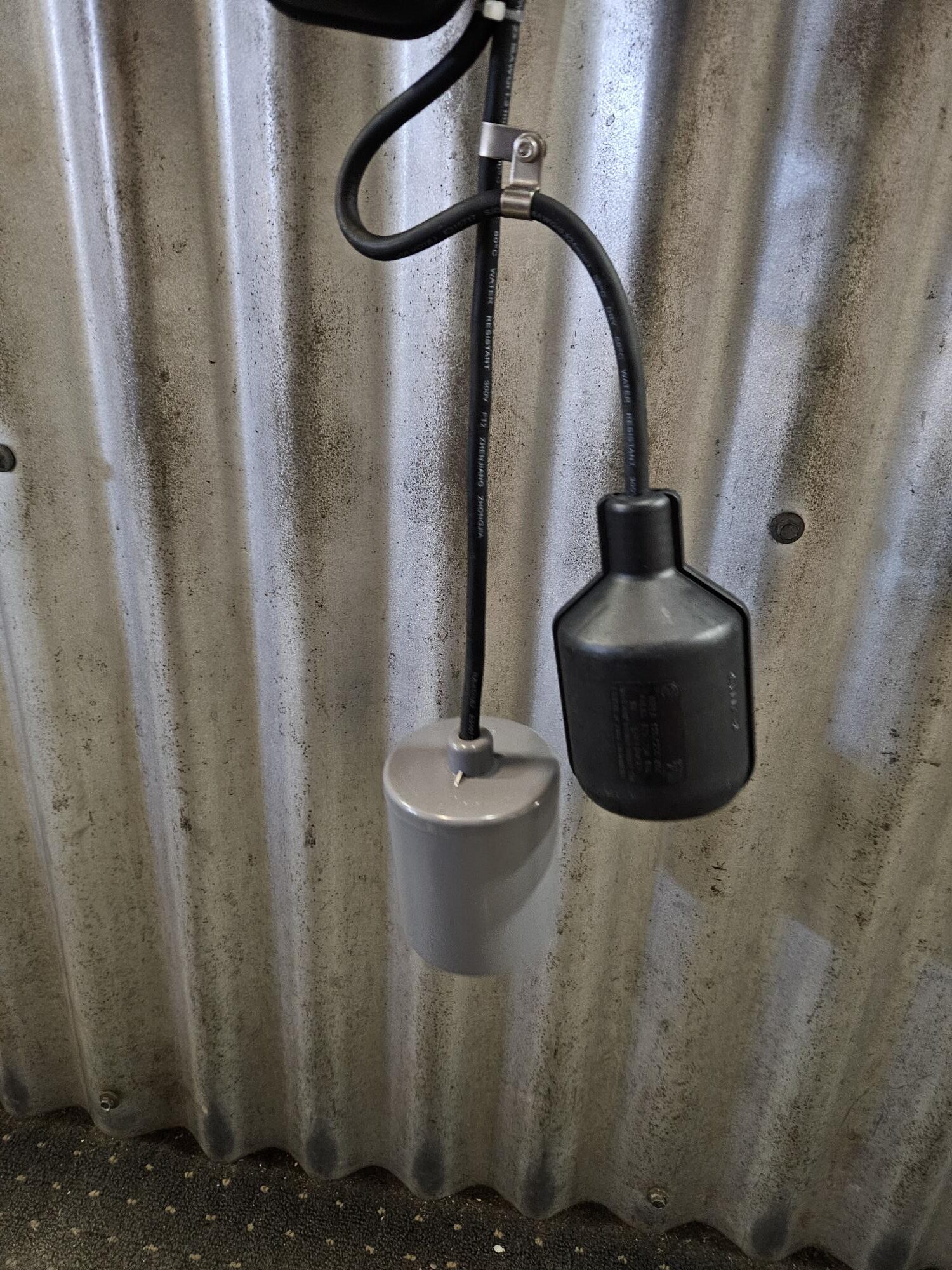

The Multi Float Tree is a unique combination of floats, configured in a way that minimises installation/setup time and overcomes the many issues associated with float switch installations.
- Resin foiled / potted connection – fully submersible

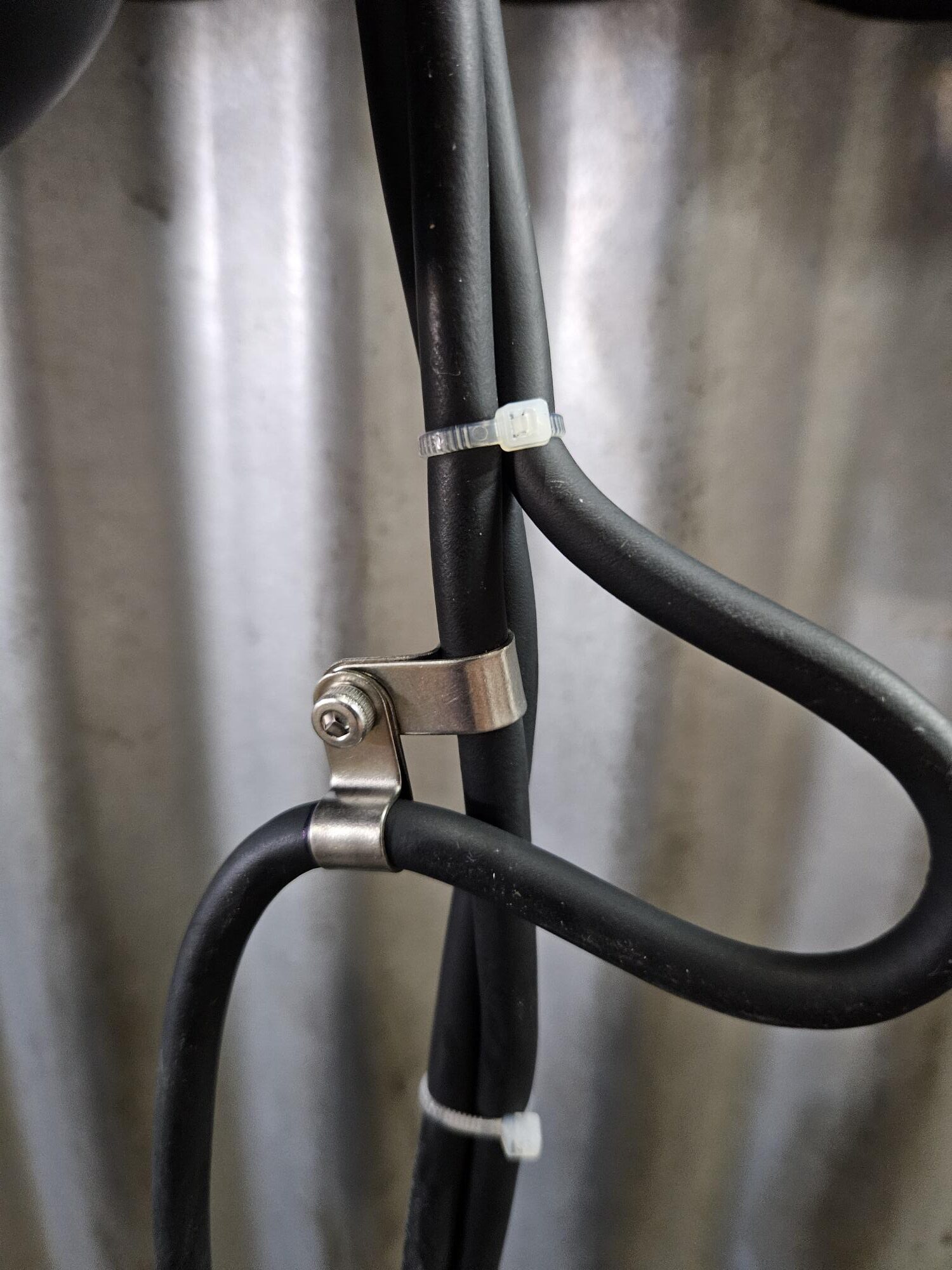

- Horizontal pivot point for switching accuracy / consistency
- Weighted – obviating flow induced travel
- No more tangled floats
- No more setting up with conduits and ties
- No more trying to pull multiple float wires through undersized conduit
- No more trying to decipher which wires relate to which floats
Specifications
- Liquid temperature: Min 0˚C (32˚F), max 60˚C (140˚F)
- Protection: IP68
- Maximum depth: 9m (30ft)
- Contact type: Mechanically activated, snap action N/O contacts (close on rise)
- Max voltage: 250Vac 50/60Hz
- Max run current: 6 Amps (resistive)
- Cable material: Floats – Neoprene rubber, Multicore – Polyvinyl chloride
- Multicore cable size: ø8mm / 4 x .75mm²
- Housing material: Polypropylene
Manufacturer’s warranty: 12 months
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Size | 3 floats + weight cable length 10 metres, 3 floats + weight cable length 20 metres |
