Description

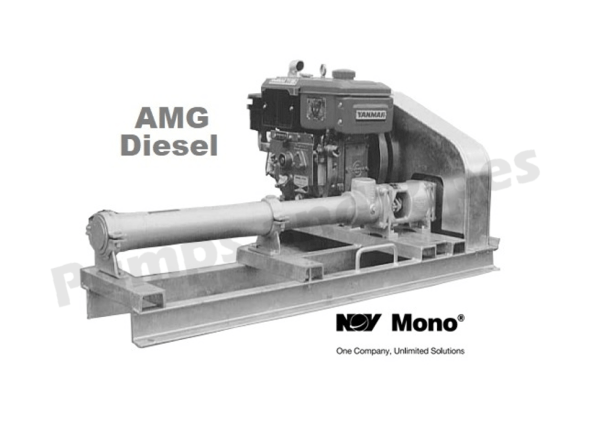

Mono Agricultural Surface Pump (AGM820) is a water transfer pump and has been designed to pump water from rivers, dams or tanks to a desired location.
Mono AGM Surface pumping system is designed and manufactured in Australia.
Mono Pumps AGM has been design tested and proven in the field over a wide range of water pumping applications.

9.0 HP  : Pump performance:   5.5 lps @ 100 metres   (4350 gph)     Yanmar 9.0 hp   (800 rpm pump speed)
12.0 HP : Pump performance:  7.5 lps @ 100 metres   (5900 gph)    Yanmar 12.0 hp  (900rpm pump speed)
19.0 HP : Pump performance:  10.0 lps @ 100 metres   (8000 gph)    Yanmar 19.0 hp  (1000rpm pump speed)

SPECIFICATIONS
Operating Temperature: -10 to 40 deg C
pH range 6 to 8.5
Hardness Range 2000 mg/L
Salt Concentration 500 ppm

Rotor Selection – Water Temperature
Standard rotor : 10 to 40 deg C
Mark 3 rotor : 40 to 70 deg C

Mechanical Specification
Suction –  80mm (3″) Female BSP Internal Thread
Outlet –  80mm (3″) Female BSP Internal Thread

Direction of Rotation
Anticlockwise when viewed from the motor or bearing housing end.

Materials (Excluding Motor)
Pump Barrel: 304 Stainless Steel
Stator: Natural rubber lining
Rotor: 316 stainless steel
Hard Chrome Plated
Flexishaft: Titanium
Mechanical seal: Carbon/Ceramic/Nitrile:
Mechanical seal holder: 304 Stainless Steel
Discharge Chamber: Cast Iron

Maximum Design Pump Pressure
AGM820 – 3000 kPa

Note: Pumps are capable of much higher pressure if flow of pump is reduced.
Running at over design pressure will reduce the life of the pump.

Manufacturer’s warranty:  2 years   Made in Australia
