Lowara DIWA-05 DIWA-07 and DIWA-11 Automatic Drainage Pump With Float

Lowara DIWA-05 DIWA-07 and DIWA-11 Automatic Drainage Pump With Float

$1,030.00$1,380.00

In stock

$1,030.00$1,380.00

DIWA series is designed to handle suspended solids up to 10mm in diameter. The pump is automatic with float

Pump Performance:  Flow rate  up to 300 lpm and max. head of 10 metres
Power Supply:  240 Volt single phase 50hz
Motor details:  240/1/50 IP68 water cooled
Motor lead: 10 meters 2C + Earth submersible cable
Discharge connection:  32mm FI BSP
Manufacturer’s warranty:  2 years  Made in Italy

SKU: N/A
Clear
View cart

Description

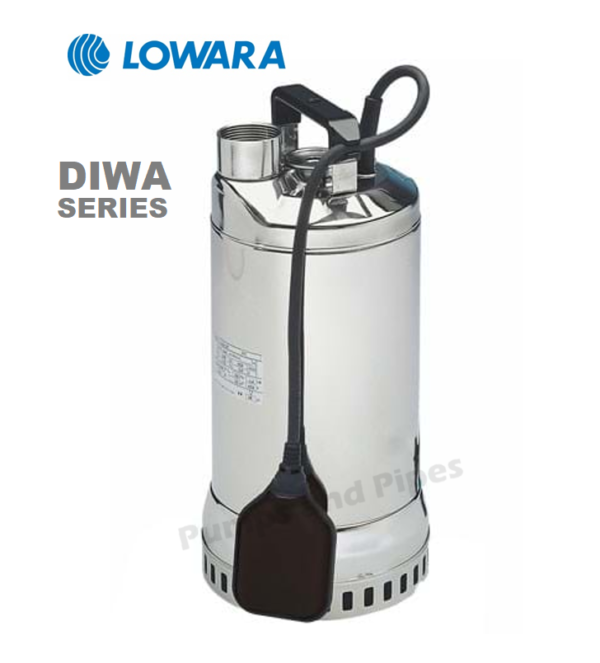

DIWA series, stainless steel submersible pump, is a impeller sump pump. DIWA pump is designed to handle suspended solids up to 20mm in diameter.
Automatic operation with float

Pump performance: DIWA-05  flow out to 250 lpm , Pressure up to 11 metres @ zero flow
Pump performance: DIWA-07  flow out to 300 lpm , Pressure up to 14 metres @ zero flow
Pump performance: DIWA-11  flow out to 380 lpm , Pressure up to 16 metres @ zero flow

Power Supply:  240Vac single phase 50hz
Motor details:  240/1/50 IP68 water cooled
Motor lead: 10 meters 2C + Earth submersible cable
Protection: Internal thermal overload
Material: AISI304 stainless steel pump body and shaft
Discharge connection:  range from 32mm FI BSP

Manufacturer’s warranty:  2 years  Made in Italy

Additional information

WeightN/A
DimensionsN/A
Brand

DIWA-05 automatic single phase with float, DIWA-07 auitomatic single phase pump with float, DIWA-11 automatic single phase pump with float

DIWA curves and technical data
