Description

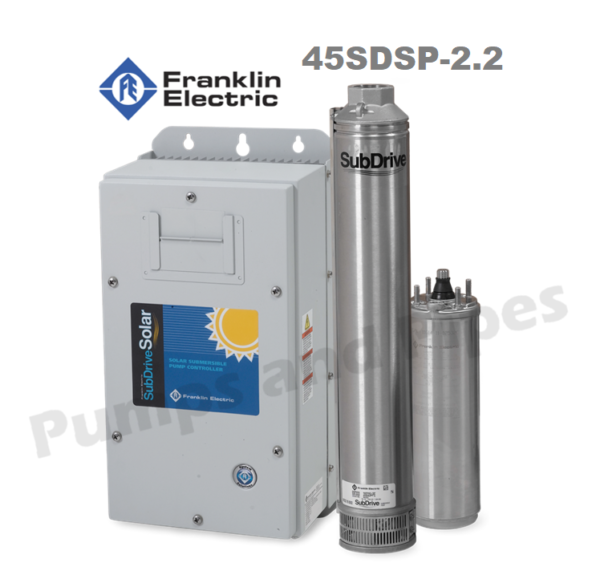

Franklin SolarPak units are powered by Solar Panels

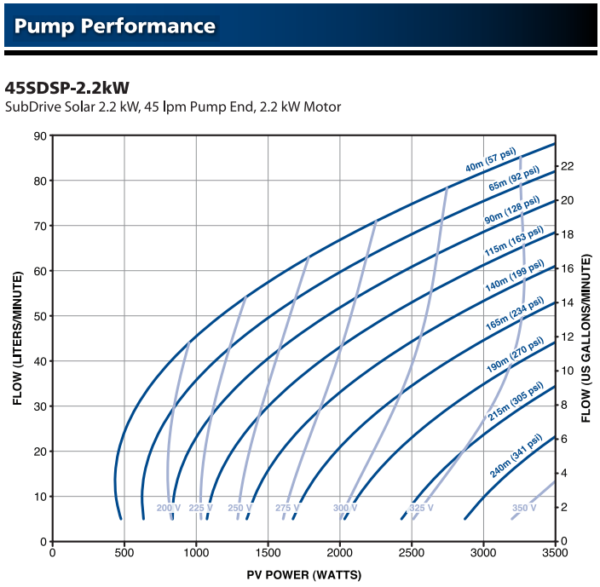

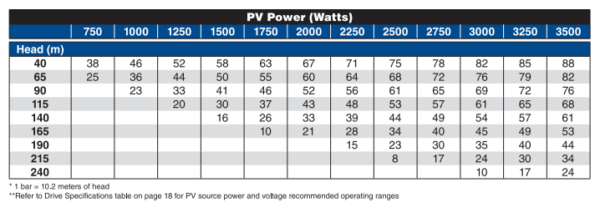

Pump performance:   60 lpm @ 90 metres PV 2500 Watts Approx. 800 gph
Pump performance:   50 lpm @  115 metres PV 2300 Watts Approx. 660 gph
Pump performance:   40 lpm @ 140 metres PV 2300 Watts Approx. 530 gph
Pump performance:   30 lpm @ 165 metres PV 2300 Watts Approx. 400 gph

Franklin Solar Subdrive Inverter DC to AC
Franklin Pump End and Franklin 200V 60HZ motor
Solar Panels are WMPP 200W, Vmpp36V, Voc 45V
DC Isolator 1000V 20 amp – IP56 Enclosure
AC Circuit Breaker 3 Phase 16 amp
MC4 lead & connectors x 10 metres (Panel to breaker)
MC4 lead & connectors x 3 metres
Shutdown Procedure Sticker
150mm diameter galvanised pole included in pole mount kit.

mpp = maximum panel power
25 Year Warranty on Solar Panels
Please call us for complete quote on Solar pumping system   (07) 3208 9488

Caution:  Systems over 90V must be installed by a suitably qualified electrician
Panels specifications are subject to change related to continuous improvement

Manufacturer’s warranty:  2 years   Made in USA
