Lorentz Helical Rotor PS2-1800 HR-14 Submersible Solar Pump

Lorentz Helical Rotor PS2-1800 HR-14 Submersible Solar Pump

$4,800.00

In stock

$4,800.00

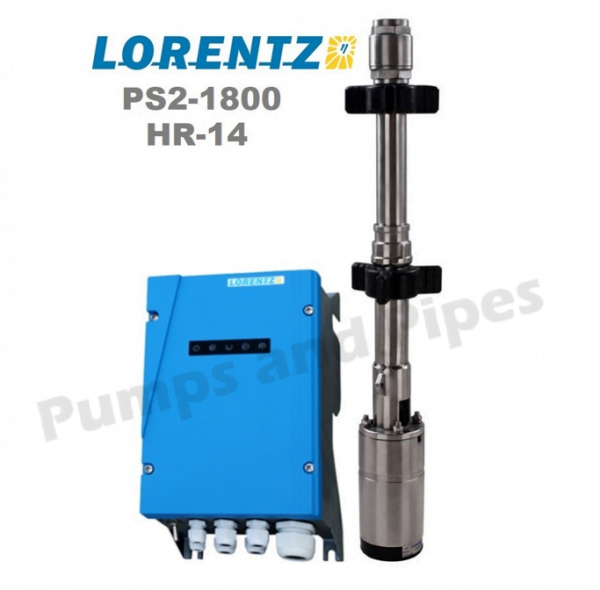

HR-14 Helical Rotor pump, Ecodrive DC motor and PS2-1800 controller

Flow rate up to 2,200 litres per hour @ 60 metres
​This combination is suitable for installation in 4″ PVC bore or floating in a dam

Manufacturer’s warranty:  2 years

SKU: PS2180014

Description

Lorentz DC powered helical rotor has been designed specifically to pump water efficiently using solar power

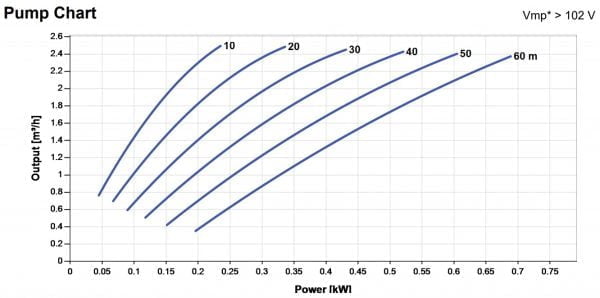

PS2-1800 HR-14 Performance

Flow rate:  10,000 litres per day @ 40 meters    panels required  2 x 330 watt solar panel
Flow rate:  12,000 litres per day @ 60 meters    panels required  3 x 330 watt solar panel

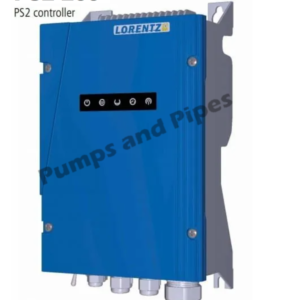

DC Controller:  Lorentz PS2-1800 DC controller max 1.8 kW
DC motor:  Lorentz ECODRIVE 1200-HR 1.7 kW IP68 3300 rpm 95mm diameter water filled motor
Pump End:  HR-14 helical rotor  304/316 ss with rubber stator
Pump connection:  32mm FI BSP

Manufacturer’s warranty:  2 years





Additional information

Weight 29.5 kg
Dimensions 35.4 × 14.7 × 77.1 cm
