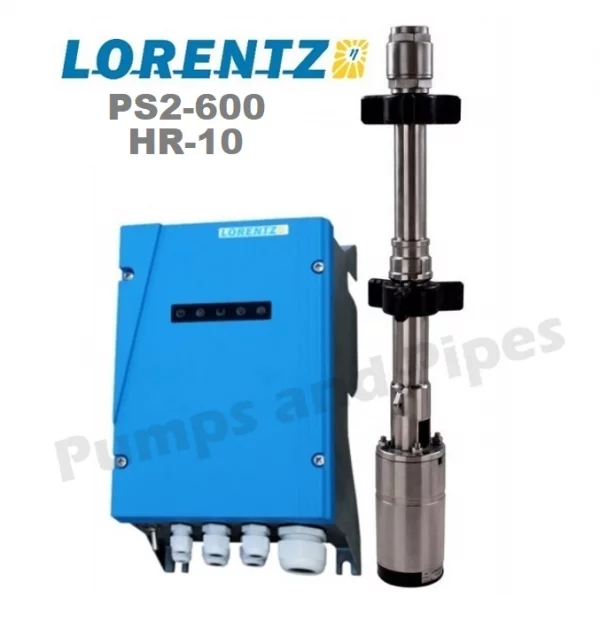

Lorentz Helical Rotor PS2-600 HR-10 Submersible Solar Pump

Lorentz Helical Rotor PS2-600 HR-10 Submersible Solar Pump

$4,150.00

In stock

$4,150.00

HR-10 Helical Rotor pump, Ecodrive DC motor and PS2-600 controller

Flow rate up to 1,500 litres per hour @ 80 metres

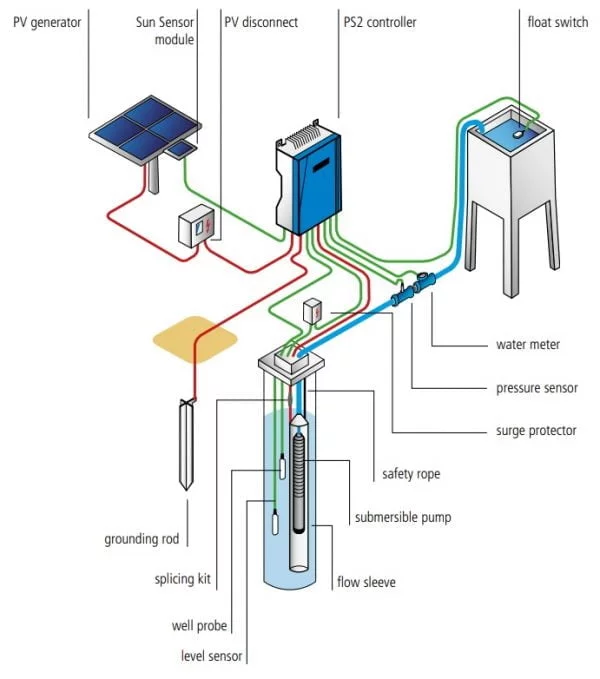

​This combination is suitable for installation in 4″ PVC bore or floating in a dam

Manufacturer’s warranty:  3 years

SKU: PS260010

Description

Lorentz DC powered helical rotor has been designed specifically to pump water efficiently using solar power

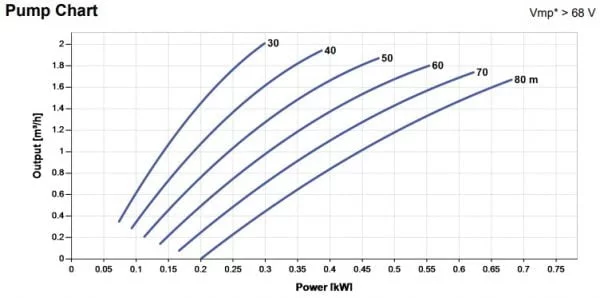

PS2-600 HR-10 Performance

Flow rate:  8000 litres per day @ 50 meters    panels required  2 x 330 watt solar panels
Flow rate:  9000 litres per day @ 80 meters    panels required  3 x 330 watt solar panels

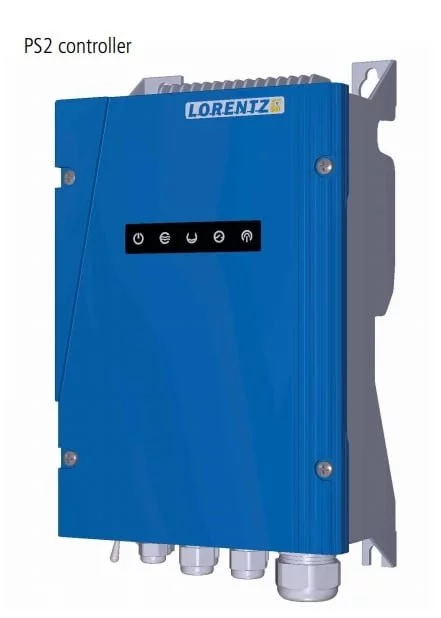

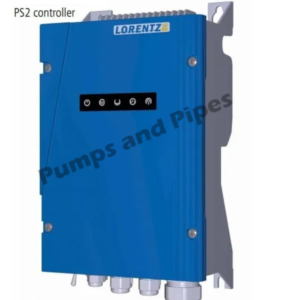

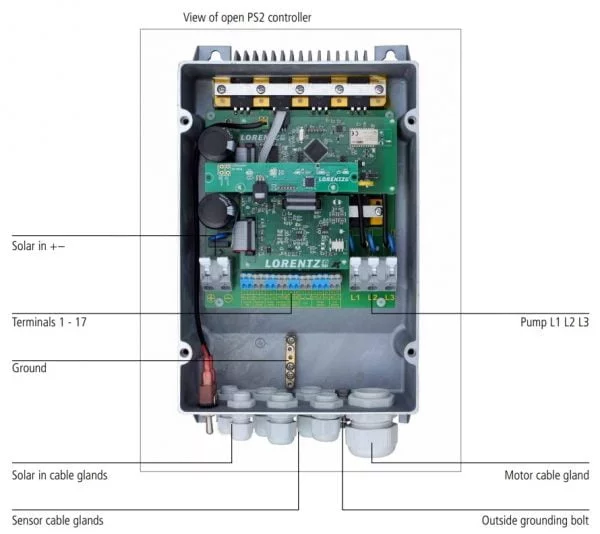

DC Controller:  Lorentz PS2-600 DC controller
DC motor:  Lorentz ECDRIVE 600-HR  0.7 kW IP68 max 13 amps 3300 rpm 95mm diameter water filled motor
Pump End:  HR-10 helical rotor  304/316 ss with rubber stator
Pump connection:  32 mm FI BSP

Manufacturer’s warranty:  3 years

Additional information

Weight 29.1 kg
Dimensions 35.4 × 14.7 × 77.1 cm
