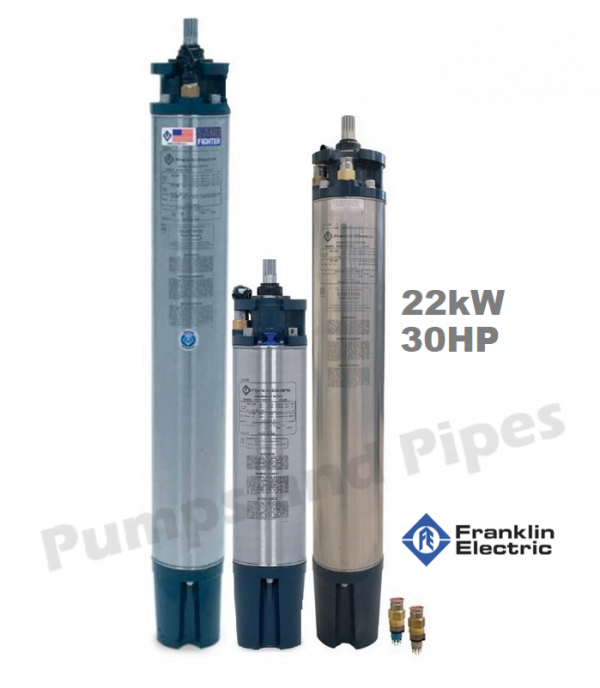

Franklin 6″ 22kW 30HP 400/3/50 Three Phase Submersible Bore Pump Motor – Standard Material – Part Number 2366166047B

Franklin 6″ 22kW 30HP 400/3/50 Three Phase Submersible Bore Pump Motor – Standard Material – Part Number 2366166047B

$4,750.00

In stock

$4,750.00

Reviews Summary by AI:

22 kW 6″ Standard Submersible Motor can be installed on all wet ends
Fit the following pump ends: Franklin, Lowara, Southern Cross, TKL, Goulds and Grundfos
22.0 kW 6″ NEMA flange, Outside Diameter 138 mm
Power supply 415 Volt three phase 50Hz FLC  47.0 Amps
Please call for pricing, more information or to discuss

Manufacturer’s warranty:  2 years   Made in USA

SKU: 2366166047B

Description

22kW 6″ Standard Submersible Motor can be installed on all wet ends with Spline Coupling. Can be used on following pump ends: Franklin, Lowara, Southern Cross, TKL, Goulds and Grundfos

Specifications:

  • Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
  • Removable Water Bloc™ lead connector
  • Cable material according to drinking water regulations (VDE/ACS/KTW approved)
  • All motors are prefilled with water and 100% testedTechnical Specifications:
  • 22.0 kW 6″ NEMA flange, Outside Diameter 138 mm
  • Starts per hour: max. 10 vertical or horizontal installation
  • Standard voltage: 415 V/50Hz FLC  47.0 Amps
  • Voltage tolerance 50 Hz: 415 Volt AC -10% / +6%
  • Insulation: Class F Rated ambient temperature: 30°C ,Cooling flow: min. 0.16 m/s
  • Single Motor lead in 4 meter length (VDE/ACS/KTW approved)
  • Types of starting Soft Starter, VSD or VFD, Auto Transformer (please call to discuss)

Please call for pricing, more information or to discuss

Manufacturer’s warranty:  2 years   Made in USA

Additional information

Weight60 kg
Dimensions120 × 15 × 20 cm
Brand

Franklin
