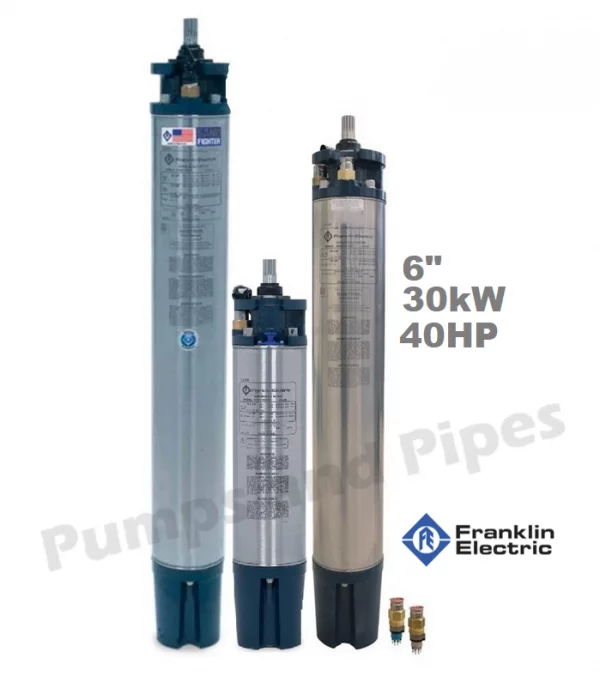

Franklin 6″ 30kW 40HP Submersible Bore Pump Motor Australia – Standard Material – Part Number 2366176047B

Franklin 6″ 30kW 40HP Submersible Bore Pump Motor Australia – Standard Material – Part Number 2366176047B

$6,575.00

In stock

$6,575.00

Reviews Summary by AI:

30 kW 40HP 6″ Standard Submersible Motor can be installed on all wet ends with Spline Coupling.
Can be fitted on Franklin, Lowara, Southern Cross, TKL, Davey and Grundfos pump ends
30.0 kW 6″ NEMA flange, Outside Diameter 138 mm
Power Supply 415 Volt three phase 50Hz FLC  58.0 Amps

Please call for pricing, more information or to discuss

Manufacturer’s warranty:  1 year   Made in USA

SKU: 2366176047B

Description

30kW 6″ Standard Submersible Motor can be installed on all wet ends with Spline Coupling. Can be used on following pump ends: Franklin, Lowara, Southern Cross, TKL, Goulds and Grundfos

Specifications:

  • Hermetically sealed stator, anti track self healing stator resin prevents motor burn out
  • Removable Water Bloc™ lead connector
  • Cable material according to drinking water regulations (VDE/ACS/KTW approved)
  • All motors are prefilled with water and 100% testedTechnical Specifications:
  • 30.0 kW 6″ NEMA flange, Outside Diameter 138 mm
  • Starts per hour: max. 10 vertical or horizontal installation
  • Standard voltage: 415 V/50Hz FLC  58.0 Amps
  • Voltage tolerance 50 Hz: 415 Volt AC -10% / +6%
  • Insulation: Class F Rated ambient temperature: 30°C ,Cooling flow: min. 0.16 m/s
  • Single Motor lead in 4 meter length (VDE/ACS/KTW approved)
  • Types of starting Soft Starter, VSD or VFD, Auto Transformer (please call to discuss)

Please call for pricing, more information or to discuss

Manufacturer’s warranty:  2 years   Made in USA

Additional information

Weight80 kg
Dimensions140 × 15 × 20 cm
Brand

Franklin

6inch Motor Data

Download

6inch Motor Electrical data

Download
