FPC-82241-HWC/TC Hot Water Circulator – Dual Pumps – Single & Three Phase Circulator Panel- Time Clock – FPC-82243-HWC/TC
$1,620.00 – $1,628.00
Hot Water Circulation Controller – Dual Pump – Single and Three Phase
Digital 24 hour time clock
6 hour alternation as standard
Inner Door
Each Pump 0.1A – 16A FLC overloads
- Description
- Additional information
- Downloads
Description

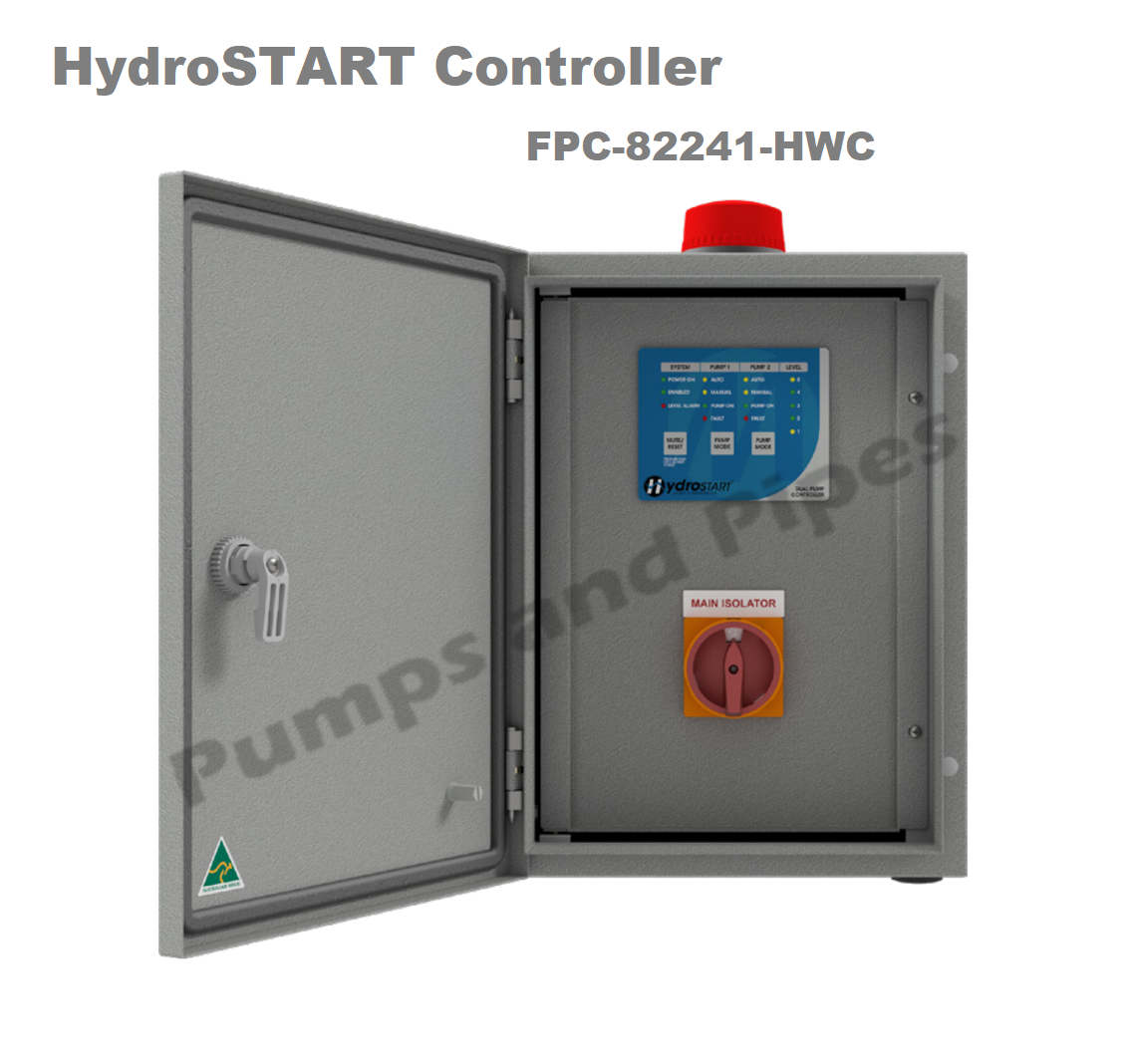

FPC-82241-HWC/TC & FPC-82243-HWC/TC
Features:
* Powder Coated Metal Enclosure, Wall mount, IP56, inner door, 400 x 400 x 200mm
* Main Isolator Switch mounted on side
* Circuit Breaker protected Control Circuit
* Low Voltage Control and Input Circuitry
* Auto/Off/Manual Operation of Pumps via keypad
* Contactors and 0.1-16Amp Range Thermal Overloads for Control and Protection of Pump Motors
* LED Indicator Lights for System Status indication
* 6 hour pump run timer and auto alternation
* Visual and Audible Alarms c/w Mute Switch
* 12Vdc Input for thermostat
* 7 day, 24 hour digital timeclock for adjustable run times
* Dual Pump Connection
Features:
* Powder Coated Metal Enclosure, Wall mount, IP56, inner door, 400 x 400 x 200mm
* Main Isolator Switch mounted on side
* Circuit Breaker protected Control Circuit
* Low Voltage Control and Input Circuitry
* Auto/Off/Manual Operation of Pumps via keypad
* Contactors and 0.1-16Amp Range Thermal Overloads for Control and Protection of Pump Motors
* LED Indicator Lights for System Status indication
* 6 hour pump run timer and auto alternation
* Visual and Audible Alarms c/w Mute Switch
* 12Vdc Input for thermostat
* 7 day, 24 hour digital timeclock for adjustable run times
* Dual Pump Connection
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 40 × 40 × 20 cm |
| Size | FPC-82241-HWC/TC dual HWC single phase pumps with time clock, FPC-82243-HWC/TC dual HWC three phase pumps with time clock |
