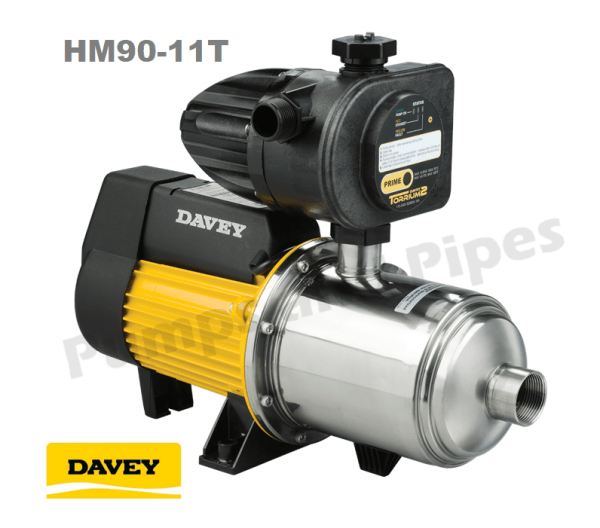

Davey HM90-11T Single Phase 1.05kW Multistage Pump $ 1,350 incl GST

Davey HM90-11T Single Phase 1.05kW Multistage Pump $ 1,350 incl GST

In stock

Davey HM90-11T pressure pump with constant flow
Flow rate: 90 lpm @ 410 kPa
Motor detail 1.05kW 230V single phase FLC 6.5amps
Pump connections: 32mm FI BSP suction 25mm MI BSP discharge
AS 4020 approved for drinking water
Manufacturer’s warranty:  2 year  Made in Australia

SKU: HM90-11T

Description

Due to Davey’s Pricing Policy, please call our office to discuss design and pricing
Davey HM90-11T pressure pump is in stock and ready to despatch or collect at $1,350.00 including GST

Automatic pressure system for household and domestic water supply, water transfer and commercial installations

Flow rate: 40 lpm @ 520 kPa
Flow rate: 80 lpm @ 460 kPa
Flow rate: 120 lpm @ 280 kPa

Motor details:  1.05 kW TEFC single phase 50hz IP56 Class F insulation 2900 rpm FLC 6.5 amps
Pump construction: Casing, impellers, diffusers AISI304 shaft AISI316 o’rings EPDM
Mechanical seal: Carbon stationary/ceramic rotating EPDM
Pump connections: Suction 32mm FI BSP, discharge 25mm FI BSP

Torrium TT70 Pump Controller supplies a constant flow from the pump
Torrium has Dry Run Protection and Auto restart, overload, high temperature, status check indicator
Torrium ratings: IP56 max 10 amps single phase 220V – 260v
Torrium Temperature rating: water max 70 degC, ambient max 50 degC, min water 1 degC
Torrium TT70 shut off pressure rating 450 kPa – 700 kPa
Connections: 25mm MI BSP inlet and outlet

Davey built, totally enclosed fan cooled (TEFC) electric motor:
• Single-phase motors have built in thermal overload protection with automatic reset
• Sealed and greased for life motor bearings
• Over sized drive bearing

AS 4020 approved for drinking water
Manufacturer’s warranty:  2 year  Made in Australia

Additional information

Weight 18 kg
Dimensions 47 × 19 × 45 cm

HM Water Pressure Systems Datasheet

Download
