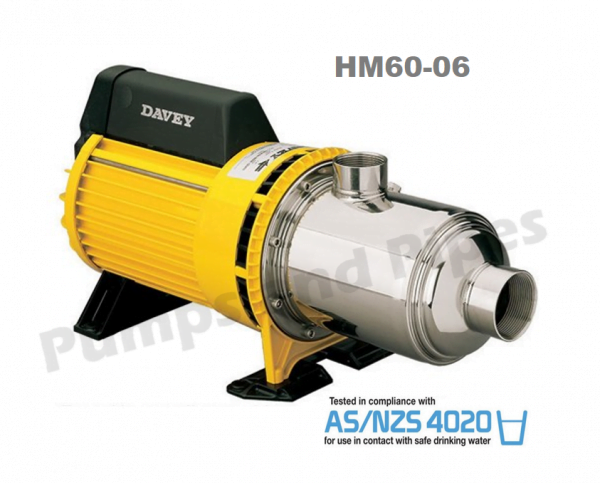

Davey HM60-06/3 Three Phase 0.58kW Stainless Steel Multistage Pump

Davey HM60-06/3 Three Phase 0.58kW Stainless Steel Multistage Pump

In stock

Reviews Summary by AI:

Davey HM60-06/3 Three Phase

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice
Pump performance: 60 lpm @ 290 kPa
Motor details 0.58kW 400/3/50 FLC 1.9 amps
Suction 32mm FI BSP Discharge 25mm FI BSP
Wetted materials AISI304 Stainless steel
Manufacturer’s warranty:  2 years

SKU: HM60-06/3

Description

APPLICATIONS

Specific applications include:
> Water supply, boosting and transfer
> Irrigation, turf watering and wash down
> Emptying/filling reservoirs or tanks
> Water treatment (demineralisation, filtering etc)
> Commercial washing equipment

Pump performance:  60 lpm @ 290 kPa
Flow rate:  zero flow @ 480 kPa   (shut off head)
Flow rate:  30 lpm @ 400 kPa
Flow rate:  80 lpm @ 180 kPa  End of curve

Maximum operating pressure 1000 kPa
Maximum suction pressure 600 kPa
Temperature range -15º to 105ºC
Maximum ambient temperature 50ºC
Supply Voltage: Three phase 415V ±10%
Motor details: 400/3/50 IP55 FLC 1.9 amps 2 pole Class F

HM range has axial suction and vertical discharge with a compact design for ease of install.

Features include:

  • All stainless-steel pump componentry for better corrosion and abrasion resistance, low noise output and reduced power consumption
  • Air purging valve and stage porting for easier priming, and less susceptibility to air leaks
  • Impellers are mounted directly on to the extended motor shaft maximising performance per stage, and increased wear resistance – leading to a long motor + pump life
  • Complete stainless casing attached to motor bracket at 8 points with an o-ring seal, for better sealing
  • Totally enclosed fan cooled (TEFC) electric motor with built in thermal overload protection and automatic reset

Manufacturer’s warranty:  2 years

Additional information

Weight13 kg
Dimensions47 × 20 × 24 cm
Brand

Davey

Davey HM Horizontal Datasheet

Download
