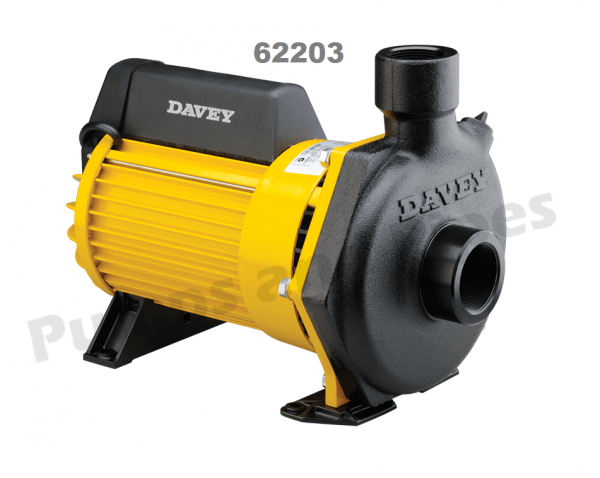

Davey Dynaflo 62203 Three Phase Cast Iron Water Transfer Pump

Davey Dynaflo 62203 Three Phase Cast Iron Water Transfer Pump

In stock

Reviews Summary by AI:

Due to Davey’s Internet Policy this product cannot be purchased online, please contact us in store for sizing and installation advice

Applications include water transfer, wash down, tank filling and irrigation

Pump Performance:  220 lpm @ 300 kPA
Motor 2.4kW 400V 2pole 50hz IP56 FLC 4.5 amps
Cast Iron Pump casing, Impeller poly carbonate
Suction 50mm FI BSP Discharge 40mm FI BSP

Manufacturer’s warranty:  2 years Made in Australia

SKU: 62203

Description

The Dynaflo 62203 is a rugged, economical choice for larger water transfer applications. The robust motor and pump design handles frequent starts for a long and reliable life and has built-in thermal overload protection with automatic reset to ensure long term motor protection.
Applications include: Water Supply, water transfer, wash down, tank filling, irrigation and cooling towers

Pump Performance:  Shut off head 38 meters ( zero flow)
Flow rate:  220 lpm @ 300 kPA
Flow rate:  300 lpm @ 220 kPA
Flow rate:  350 lpm @ 100 kPA (end of curve)

Power Requirements:  380-415 Volt three phase 50 hz
Motor data:  2.4kW 400V 2pole 50hz IP56 Class F Insulation
Motor Draw:  FLC 4.5 amps LRC 24 amps
Power lead: no lead supplied, 3C + Earth existing motor
Pump Construction:  Cast Iron Pump casing, Impeller poly carbonate
Pump Connections:  Suction 50mm FI BSP Discharge 40mm FI BSP
Maximum casing pressure: 10 bar
Liquid Temperature Range: +1 deg C – +50 deg C
Maximum Suction Lift: 7 meters at sea level

Manufacturer’s warranty:  2 years Made in Australia

Additional information

Weight30 kg
Dimensions40.5 × 27 × 29.5 cm

Dynaflo 62203 data

Download

Dynaflo Instruction Manual

Download
