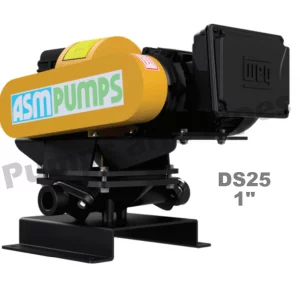

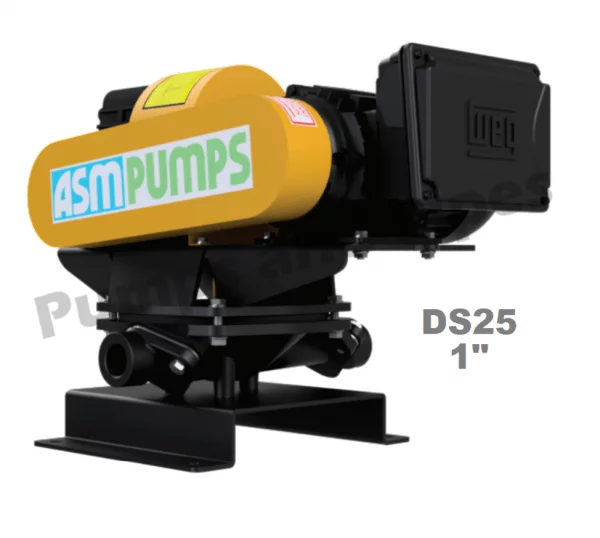

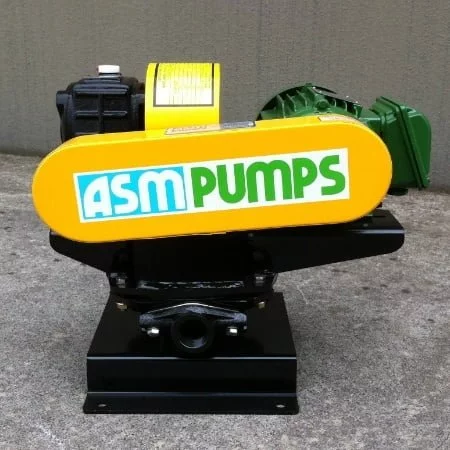

ASM DS25 Single Phase Trade Waste Diaphragm Pump

ASM DS25 Single Phase Trade Waste Diaphragm Pump

$1,680.00

In stock

$1,680.00

Applications: transfer, dewatering , oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping

Port size:  1″ FI BSP inlet and outlet
Pump performance:    23 litres per minute
Power requirements:  0.25kW 240V single phase IP55 rated

Manufacturer’s warranty:  2 years



SKU: DS25

Description

Applications: transfer, dewatering , oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping

Port size:  1″ FI BSP inlet and outlet

Pump performance:    23 litres per minute

Max suction lift:   6 meters
Max discharge head:  6 meters
Max solid size:   15mm sphere

Material of construction:   SG Cast Iron  (Options: bronze, stainless steels)
DIAPHRAGM : nitrile  (Options: EPDM, viton, teflon interface)
VALVES: nitrile flap with stainless steel seats  (Options: EPDM, viton, polyurethane)

Power requirements:  0.25kW 240V single phase IP55 rated

Manufacturer’s warranty:  2 years



Additional information

Weight 25 kg

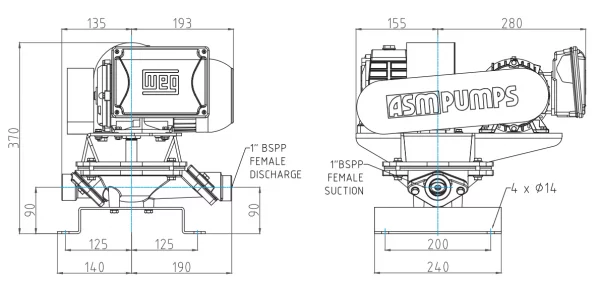

Dimensions 35 × 35 × 40 cm

D25 data sheet

Download

D-series instruction manual

Download
