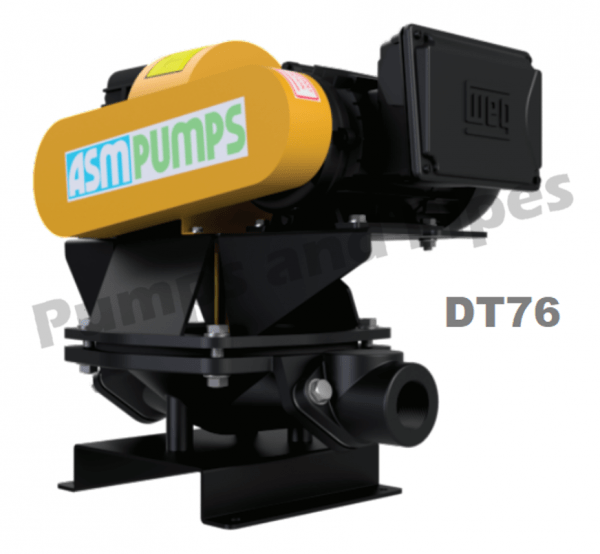

ASM DT76 Three Phase Trade Waste Diaphragm Pump – 1.5kW IP56 Motor

ASM DT76 Three Phase Trade Waste Diaphragm Pump – 1.5kW IP56 Motor

$3,380.00

In stock

$3,380.00

View cart

Applications: transfer, dewatering, oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping

Connection ports: 3″ FI BSP
Pump Performance : 240 litres per minute
Max suction lift: 5 metres
Max discharge head: 6 metres
Max solid size: 60 mm Sphere
Motor: DT76 1.5kw 415v 3 phase IP56

Manufacturer’s warranty:  2 years

SKU: DT76

Description

Applications: transfer, dewatering, oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping

Connection ports: 3″ FI BSP

Pump Performance : 240 litres per minute

Max suction lift: 5 metres
Max discharge head: 6 metres
Max solid size: 60 mm sphere

Casting: Aluminium  (Options: Cast Iron, Bronze, Stainless steels)
Diaphragm : Neoprene  (Options: Nitrile, EPDM, viton, teflon interface)
Valve: Neoprene flap with stainless steel seats  (Options: Nitrile, EPDM, viton, polyurethane)

Motor: DT 1.5kw 415v 3 phase IP56
Motor options:  Single phase, Engine driven, 12V, 24V, air and hydraulic motors

Manufacturer’s warranty:  2 years

Additional information

Weight46 kg
Dimensions60 × 40 × 50 cm
Brand

ASM Pumps

D-series instruction manual

Download

DT76 pump data sheet

Download

D series performance table

Download
