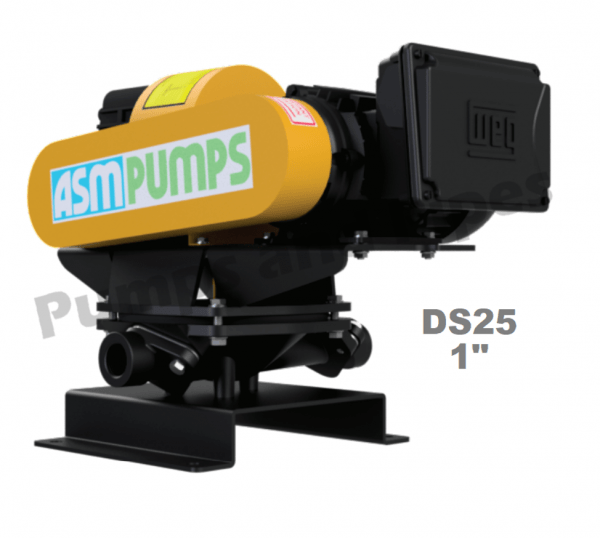

ASM DS25EXD Exd II BT4 Gb Certified Single Phase Trade Waste Diaphragm Pump

ASM DS25EXD Exd II BT4 Gb Certified Single Phase Trade Waste Diaphragm Pump

$2,680.00

In stock

$2,680.00

Applications include transfer, dewatering , oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping
Used existentially in the service station market

Port size:  1″ FI BSP inlet and outlet
Pump performance:    23 litres per minute
Motor Specifications:  0.75kW 240V 1440rpm Exd II BT4 Gb  FLC 5.0amps

Manufacturer’s warranty:  2 years  Made in Australia



SKU: DS25-EXD

Description

Applications: transfer, dewatering , oil skimming, oil/water separation, waste treatment , spill clean up, bilge pumping
Mainly used around service stations in Australia

Port size:  1″ FI BSP inlet and outlet

Pump performance:    23 litres per minute

Max suction lift:   6 meters
Max discharge head:  6 meters
Max solid size:   15mm sphere

Material of construction:   SG Cast Iron  (Options: bronze, stainless steels)
DIAPHRAGM : nitrile  (Options: EPDM, viton, teflon interface)
VALVES: nitrile flap with stainless steel seats  (Options: EPDM, viton, polyurethane)

Motor Specifications:  0.75kW 240V 1440rpm Exd II BT4 Gb  FLC 5.0amps
Lead: 6G x 1.5mm2 x 1.5m
Certification: IECEx CQM 12.0044X

Manufacturer’s warranty:  2 years   Made in Australia



Additional information

Weight 30 kg
Dimensions 35 × 35 × 40 cm
Brand

ASM Pumps

D-series instruction manual

Download

DS25EXD Single phase

Download
