Description

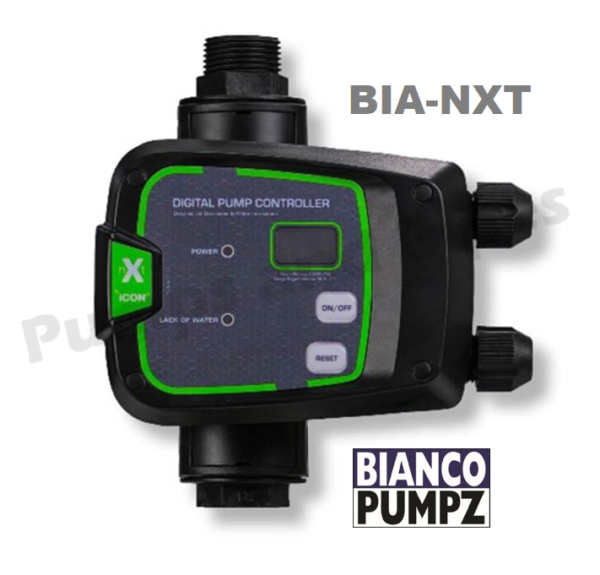

The NXT series of pump controls represents the next step in pressurised pump control.

Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:

Maximum Amps:  10 amps
Maximum power:  1500 watts  220/240 volt single phase
Maximum Pressure:  10 bar
Connections:  25mm MI BSP
Start value:  2.2 bar  (30 psi)

Features

• Digital display gives you a real time indication of system pressure
• Anti-cycle Protection
• Dry run protection with auto restart function that tests for water availability every 24hrs
• Anti-seize function if pump has not operated for last 24 hours
• Controller automatically restarts pump after a power failure
• Easy assembly and removal using push-n-connect fitting with U clip
• Complies to AS/NZ 4020 drinking water standard
• Over pressure protection turns pump off when 10 bar is reached
• Overload protection

Manufacturer’s warranty:  2 years
