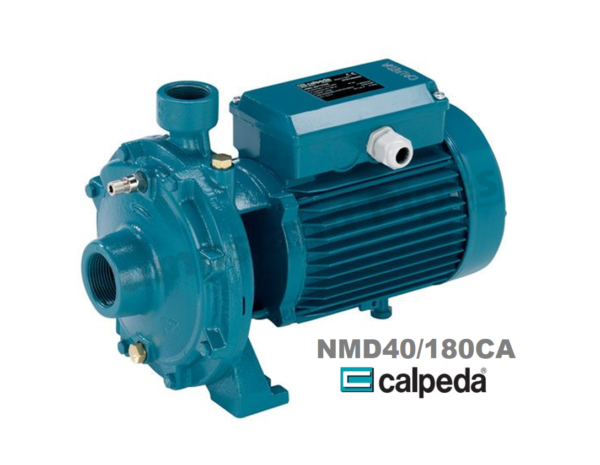

5 lps @ 550 kPA NMD40/180CA Calpeda 5.5kW 7.5hp Three Phase Pump Unit for Irrigation – Wash down – Made in Italy
$3,060.00
Calpeda centrifugal motor pump which is used for industrial, water transfer, wash down and irrigation pump
Pump performance: 300 lpm @ 550 kPa
Power supply: 5.5kW 415V three phase 50hz FLC 10.9A
Manufacturer’s warranty: 2 years Made in Italy
- Description
- Additional information
- Downloads
Description
Calpeda centrifugal motor pump which is used for industrial, water transfer, wash down and irrigation pump
Pump performance: Shut off head 700 kPa (94 psi) no flow closed valve
Pump performance: 150 lpm @ 670kPa
Pump Performance: 200 lpm @ 650 kPa
Pump Performance: 300 lpm @ 550 kPa
Material of construction: CI/CI/SS
Power supply: 5.5kW 415V three phase 50hz FLC 10.9A
Impeller material: 2 x cast iron impellers
Suction connection: 50mm FI BSP
Discharge connection: 40mm FI BSP
Starting method: DOL, VSD or soft starter
Liquid temperature: -10 deg C to 90 deg C
Manufacturer’s warranty: 2 years Made in Italy
Additional information
| Weight | 110 kg |
|---|---|
| Dimensions | 70 × 40 × 40 cm |
| Brand | Ebara |
