Description

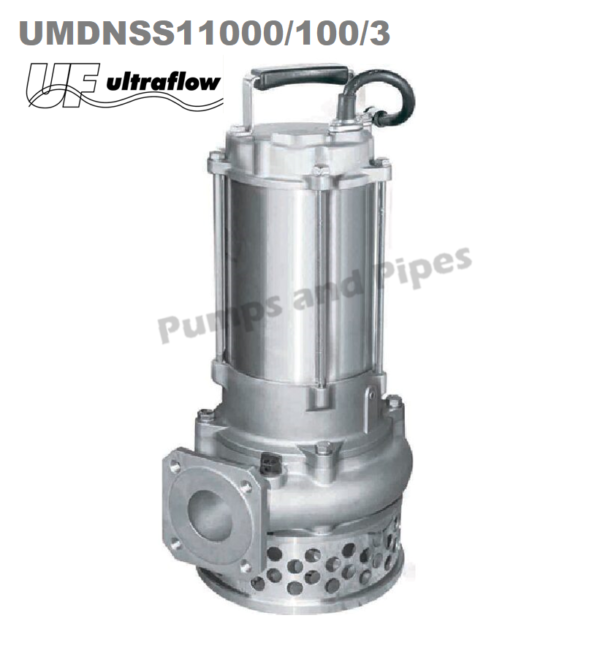

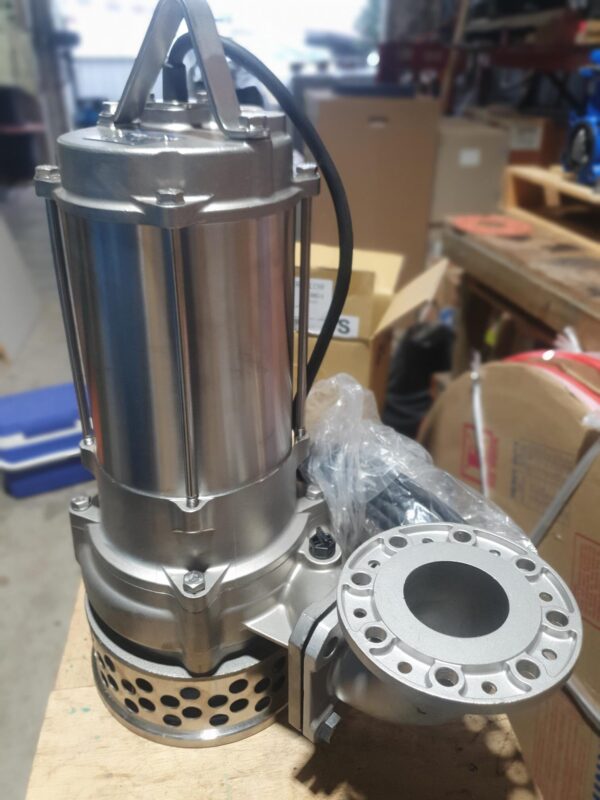

UMDNSS11000/100/3 AISI316 Stainless Steel Drainage Sump Pump

SS pump are suitable for Sit Dewatering, Basement and sump drainage, Horticulture and Aquaculture and water transfer

We use these pumps in underground basements where seawater or brackish river water is seeping into underground basements
Sea water fountain or display, aquaculture water transfer
Stainless steel pumps that replace existing cast iron sump pumps

Pump performance: zero flow @ 53 metres  shut off head
Pump performance: 600 lpm @ 47 metres
Pump performance: 900 lpm @ 42 metres
Pump performance: 1200 lpm @ 38 metres
Pump performance: 1800 lpm @ 20 metres

Pump outlet:  80mm or 100mm flanged
Solid passage:  20 mm
Electrical data:  11.0kW 400/3/50 FLC 21.6 amps IP68 2pole
Protection: External overload required three phase,
Motor lead:  10 metres 3C + E H07RN-Frubber cable
Starting method:  DOL
Maximum submergence: 10 metres
Pump installation:  Free standing or auto coupling

Manufacturer’s warranty:  2 years   Made in Taiwan
