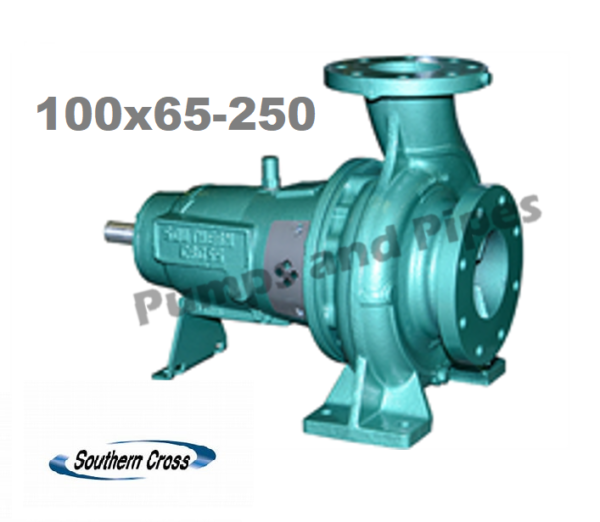

100×65-250 Southern Cross ISO PRO Heavy Duty End Suction Pump – PRGD2A – PRGD2J – PRGD2S – Only Available With Stainless Steel Impeller – New Models PRGD2J-278 & PRGD2S-278
$3,997.00 – $8,598.00
100 x 65-250 Southern Cross ISO PRO Bare Shaft End Suction Pump
Pump performance: Variable performance
Material of construction: CI/SS/SS and SS/SS/SS
CI/SS/SS – Only stocked unit
Pump connections:
Inlet 100mm E flanged
Outlet 65mm E flanged
Manufacturer’s warranty: 2 years
- Description
- Additional information
- Downloads
Description
100 x 65-250 Southern Cross ISO PRO Bare Shaft End Suction Pump
Application include water transfer, air conditioning transfer transfer, diesel driven irrigation pumps, dust suppression and fire protection
Heavy duty ISO end suction pump
Pump performance: Variable performance
Material of construction: CI/CI/SS , CI/SS/SS and SS/SS/SS
CI/SS/SS : casing/impeller/shaft – Only stocked unit
Mechanical seal: Silcon/Silcon/Viton
Elastomers: Viton
Pump connections:
Inlet 100 mm E flanged
Outlet 65 mm E flanged
Mode of prime mover: Electric motor, diesel engine or pneumatic controlled
Manufacturer’s warranty: 2 years
Additional information
| Weight | 140 kg |
|---|---|
| Dimensions | 80 × 60 × 60 cm |
| Size | PRGD2A ISO PRO CI/CI/SS 100X65-250 bare shaft pump, PRGD2J ISO PRO CI/SS/SS 100X65-250 bare shaft pump, PRGD2S ISO PRO SS/SS/SS 100X65-250 316 SS bare shaft pump |
