Description

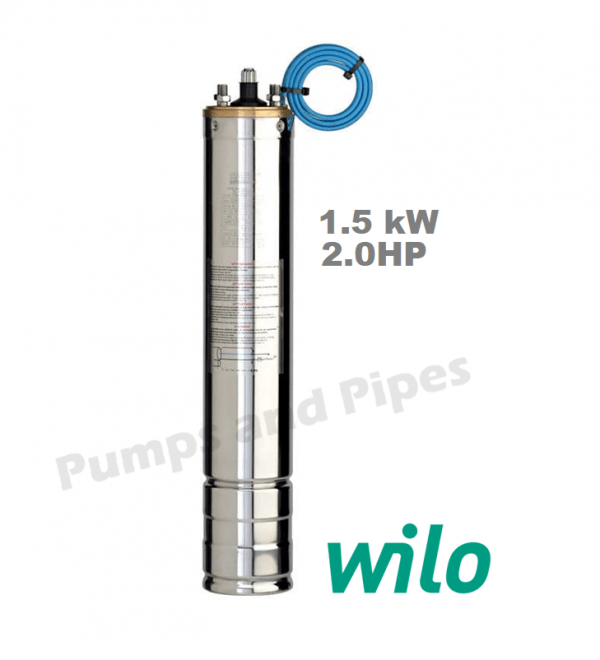

Wilo 4″ Submersible Pump Motor

1.5kW 2.0HP Submersible Bore Pump Motor
Motor Protection: integral overload
NEMA standard : Most submersible pump are built to NEMA standard
Motor connection:  4 bolt, male spline shaft
Dimension: 95mm Outside diameter
Voltage:  220-240Volt -6% + 10%
Amperage draw:  FLC 10.4 amps  LRC 38 amps
Motor lead:  1.5mm2 x 1.7 meters 2C + E
Will fit all major brands of submersible bore pumps
No control panel required to start and stop pump

Manufacturer’s warranty:  2 years
