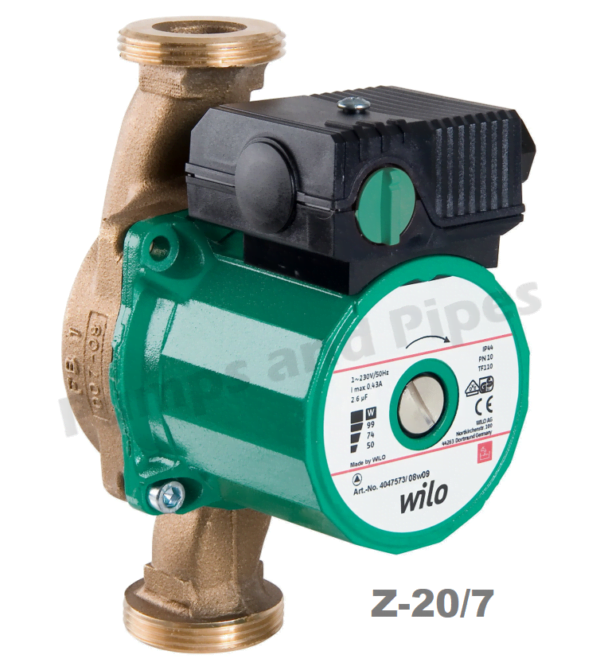

WILO Z-20/7 150mm Hot Water Circulator Pump – Obsolete Product – Call Us to Discuss A Replacement
Hot Water Circulator with three speed motor
Sanitary hot water circulation systems in the industry and building services
Type key Example: Wilo Z 20/7-3 three speed
Obsolete Product
Permissible temperature range – Heating +2 °C to + 65 °C
Single phase 230 V, 50 Hz 57W FLC 0.58 amps
Screwed union connection: Rp 20mm
Manufacturer’s warranty: 2 years Made in EU
- Description
- Additional information
- Downloads
Description
Hot Water Circulator with three speed motor
Sanitary hot water circulation systems in the industry and building services
Design type: Glandless circulator with screwed connection
Type key Example: Wilo Z 20/7-3 (Three (3) speed)
Permissible temperature range – max. +65 °C
Mains connection: Single phase 230 V, 50 Hz
Motor electrical: 230/1/50 57W FLC 0.58 amps
Protection class: IP44
Screwed union connection: 20mm Port to Port 150mm
Max. operating pressure: 10 bar
Materials
Pump housing Bronze , Impeller Plastic, Shaft Ceramic, Bearing Carbon synthetic resin impregnated
Manufacturer’s warranty: 2 years Made in EU
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 20 × 15 × 20 cm |
| Brand | Wilo |
