Bore Pump 3100gph @ 40m 2.2kW 3hp 4″ Stainless Steel Pump

Bore Pump 3100gph @ 40m 2.2kW 3hp 4″ Stainless Steel Pump

$1,650.00

In stock

$1,650.00

Reviews Summary by AI:

Wilo TWI 4.14-07-BT 4” Submersible bore pump
Pump performance:  2600 gph @ 40 meters
Motor details 2.2kW 3.0hp three phase FLC 5.6 amps
Pump end made of AISI304 stainless with built in check valve
Manufacturer’s warranty:  2 years

SKU: TWI041407BT

Description

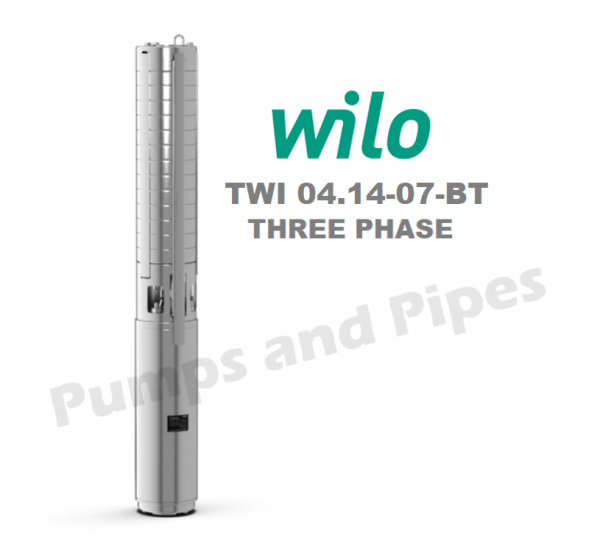

Wilo TWI 4.14-07-BT 4” Stainless steel Submersible Pump

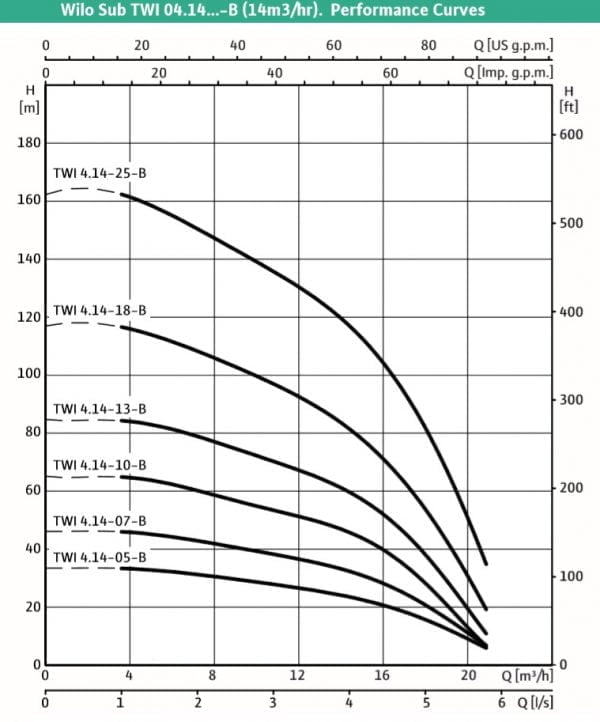

Pump performance:  Shut off head 46 meters ( no flow)
Flow rate 120 lpm @ 42 meters
Flow rate 180 lpm @ 38 meters or     1580 gph @ 124 feet
Flow rate 240 lpm @ 26 meters
Flow rate 300 lpm @ 20 meters

Material of construction:  AISI 304 stainless steel pump end and motor
Motor details:  2.2kW 3.0 hp 400 Volt three phase FLC 5.6 amps
Unit diameter: 95 mm

  • For water and potable water supply from boreholes
  • For municipal water supply and irrigation.
  • 4” Submersible pump for vertical or horizontal installation

Easy installation through integrated non-return valve
Pump & Motor supplied in separate cartons for assembly on site by others- 1.7 m connecting cable supplied.
3C + E motor lead existing from motor

Long service life thanks to corrosion-resistant AISI304 stainless steel
Pump unit supplied with heat shrink.

Manufacturer’s warranty:  2 years

Additional information

Weight24 kg
Dimensions130 × 12 × 12 cm
Brand

Wilo

Wilo Sub TWI Borehole Brochure

Download
