Wilo Bore Pump 1580gph @ 42m 1.5kW 2HP Three Phase Stainless

Wilo Bore Pump 1580gph @ 42m 1.5kW 2HP Three Phase Stainless


In stock


Reviews Summary by AI:

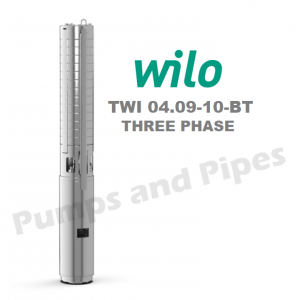

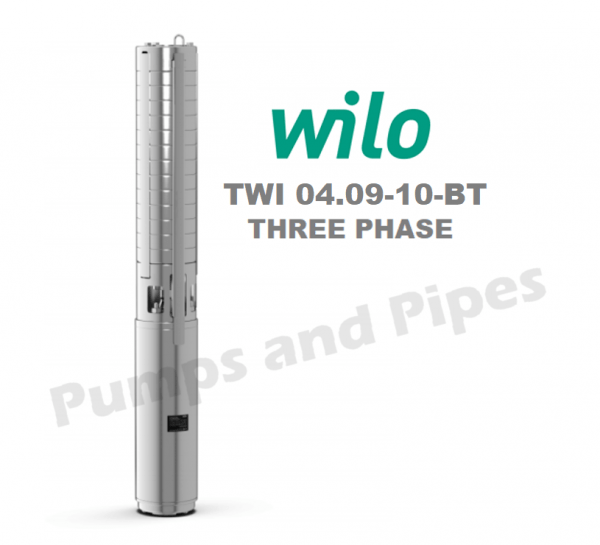

Wilo TWI 4.09-10-BT 4” Submersible pump unit
Wilo 1.5kW 2.0hp three phase 415/3/50  FLC 4.0 amps
Outlet : 40mm FI BSP
Pump performance:  120 lpm @ 42 meters
Complete AISI304 stainless steel
Manufacturer’s warranty:  2 years

SKU: TWI040910BT


Wilo TWI 4.09-10-BT 4” Stainless steel Submersible Pump

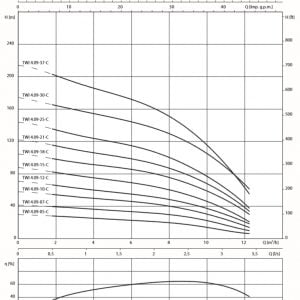

Pump performance:  Shut off head 60 meters ( no flow)
Flow rate 60 lpm @ 52 meters
Flow rate 120 lpm @ 42 meters or     1580 gph @135 feet
Flow rate 180 lpm @ 23 meters

Material of construction:  AISI 304 stainless steel pump end and motor
Motor details:  1.5kW 2.0 hp 400 Volt three phase FLC 4.0 amps
Unit diameter: 95 mm

  • For water and potable water supply from boreholes
  • For municipal water supply and irrigation.
  • 4” Submersible pump for vertical or horizontal installation

Easy installation through integrated non-return valve
Pump & Motor supplied in separate cartons for assembly on site by others- 1.7m connecting cable supplied.
3C + E motor lead existing from motor

Long service life thanks to corrosion-resistant AISI304 stainless steel
Pump unit supplied with heat shrink. Must be installed by licenced electrician

Manufacturer’s warranty:  2 years

Additional information

Weight20 kg
Dimensions110 × 12 × 12 cm


Wilo Sub TWI Borehole Brochure
