Wilo Bore Pump 1000gph @ 75m Single Phase

Wilo Bore Pump 1000gph @ 75m Single Phase


In stock


Reviews Summary by AI:

TWI 04.05-17-BM 4” Submersible pump
1.5kW 2.0hp single phase, 2 wire 240Volt
40mm FI BSP outlet
Pump performance:  60lpm @ 75 meters
Complete AISI304 stainless
Manufacturer’s warranty:  2 years

SKU: TWI040517B

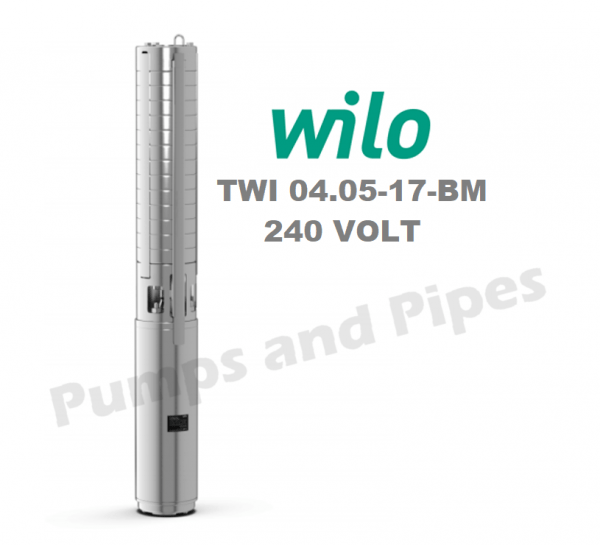

Wilo TWI 4.05-17-BM   single phase 4” Stainless Steel Bore Pump

Pump performance:  60lpm @ 75 meters  or 1000gph @ 240′

  • For water and potable water supply from boreholes and rainwater storage.
  • For municipal water supply, sprinkling and irrigation.
  • For pumping water in industrial applications.
  • 4” Submersible multistage pump for vertical or horizontal installation

Easy installation through integrated non-return valve
Pump & Motor supplied in separate cartons for assembly on site by others- 1.7m connecting cable supplied.
2C + E motor lead existing from motor

Long service life thanks to corrosion-resistant AISI304 stainless steel
Pump unit supplied with heat shrink. Must be installed by licenced electrician

Manufacturer’s warranty:  2 years

Additional information

Weight16 kg
Dimensions98 × 12 × 12 cm


Wilo Sub TWI Borehole Brochure
