Description

Application

For pumping water and rainwater from wells and tanks for:

• House hold water supply
• Irrigation and spraying
• Sand Spears

FEATURES

• Self-priming pumps and systems
• Automatic pump control and dry-run protection via Wilo press control
• Full stainless steel hydraulic assembly including impeller
• Approved for potable water – AS 4020
• Self-priming capabilities up to 8m
• Power: 1100W
• Max head: 49m
• Max Flow: 83lpm
• Widely used in well water lifting, garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, pipeline boosting, etc
• 2 Year Warranty

APPLICATION LIMITS

• Suction head up to 8m
• Perm. fluid temperature: +5 °C to +35 °C (+55 °C for 10 min)
• Perm. operating pressure: Max. 6 bar

EQUIPMENT FUNCTION

• Directly flanged motor
• Connection cable with plug
• Thermal motor protection
• Automatic pump control
• Low-water cut-out switch gear

IN THE BOX

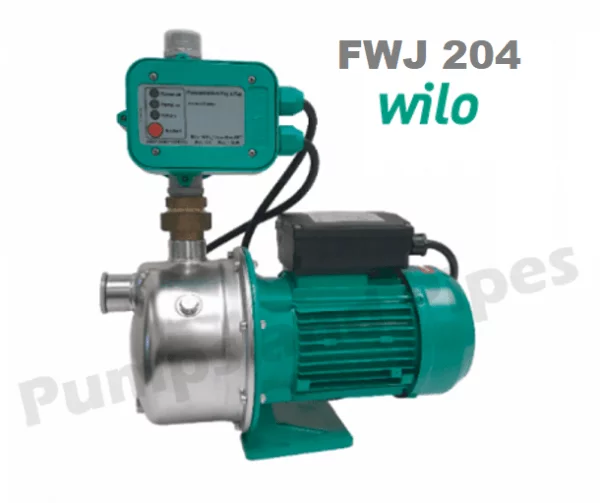

• 1 x Jet Pump and controller
• 1 x User’s Manual
